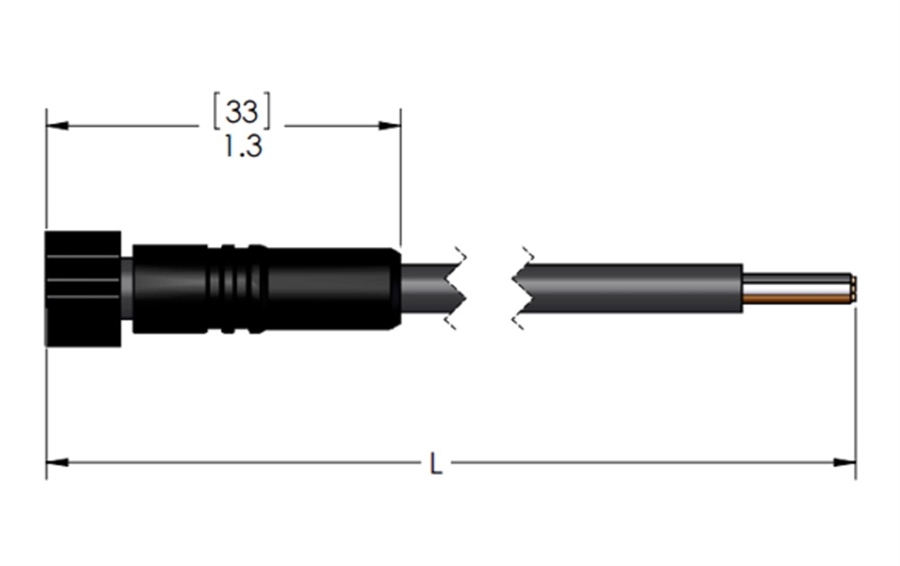

The Mencom NANP-T-4FP-5M Pico (M8) female straight cordset features a 4 pin insert, 24 gauge wire and 5 meters of cable. The body is black PUR with gold plated copper alloy contacts. The molded cable cordset is rated at 60V and 3 A. Rated IP 67 for protection from water and dirt. Operating temperature -40 C to 80 C (-40 F to 176 F). Named for their M8 size mating thread, Mencom M8 cordsets are intended for use with smaller sensors and actuators.
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Specifications
- Body- Black PUR
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Rated Voltage- 60 V
- Rated Current- 3 Amps
- Wire Gauge- 24
- Pin Count- 4
- Cable Length- 5 M (16.4')
- Cable O.D.- 0.18
- Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
- Orientation Head- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- M8
Can be compatible with Brad Harrison/Molex 120086-0173
