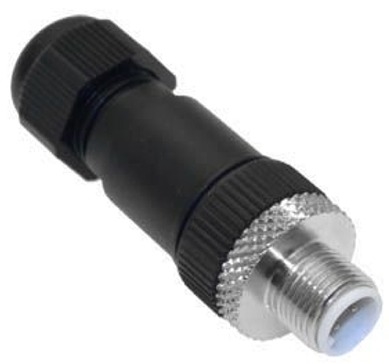

The Mencom MEC-5MP-FW09 Euro-AC (M12) male straight field wireable plug features a 5 pin insert. The PG 9 cable entry accepts 4-8 mm cable. The body is black polyamide with gold plated copper alloy contacts. The MEC5MPFW09 has a rated voltage of 250V and a rated current of 4A. This M12 connector can be wired by inserting the wires into the screw terminal contacts. It is liquid tight and compatible with other Mencom MEC connectors. Rated IP67. Operating temperature: -25 C to 85 C (-13 F to 185 F). Mencom MEC B-Coded hardwired plugs are known by their M12 coupling nut and have plug and play capability for a number of applications.
Specifications
