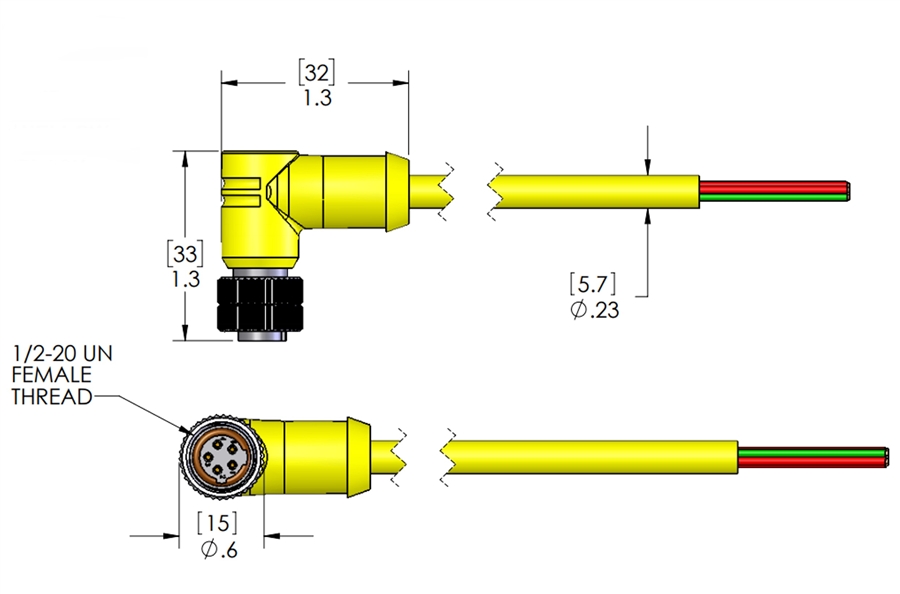

The Mencom MAC-5FP-6M-R Micro AC (1/2-20) female right angle cordset features a 5 pin insert, 22 AWG wire and 6 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and a C-code dual keyway. While comparable in size & shape, they have a different color code than MDC series M12 connectors.
Pin #1 - Red/White
Pin #2 - Red
Pin #3 - Green/Yellow
Pin #4 - Red/Yellow
Pin #5 - Red/Black
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/5 AWM 2661 Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 5
- Cable Length- 6 meter (19.68 ft)
- Cable O.D.- 0.22
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- 1/2-20UN2
- Nut- No
- Approvals- UL & CUL Listed
5 Pin Female Right Angle 1/2-20 6 Meter Molded Cable MAC-5FP-6M-R
