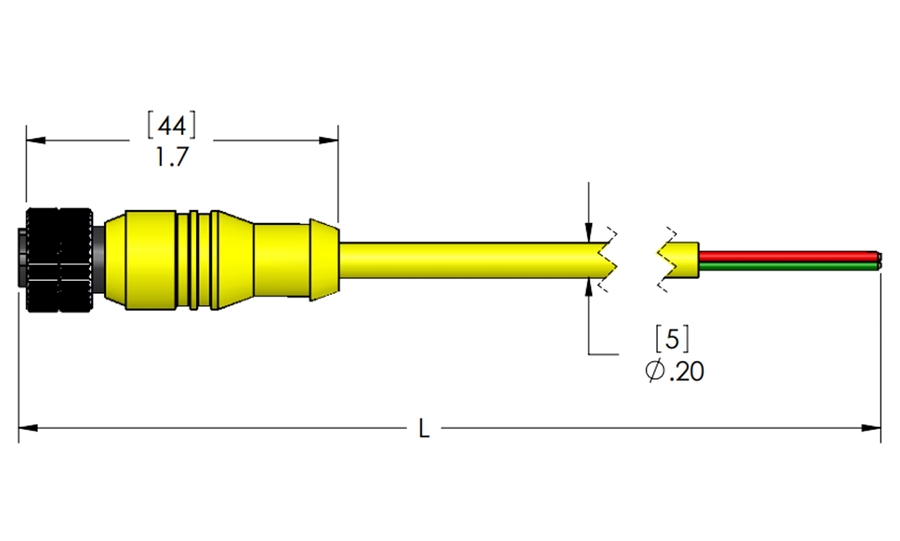

The Mencom MAC-3FP-5M Micro AC (1/2-20) female straight cordset features a 3 pin insert, 22 AWG wire and 5 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and provide plug and play solutions for various applications. While comparable in style and shape, they have a different wiring color code than MDC series M12 connectors, as well as a C-coded dual keyway.
Pin #1 - Green/Yellow
Pin #2 - Red/Black
Pin #3 - Red/White
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/3 AWM Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 3
- Cable Length- 5 meter (16.4 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- 1/2-20UN2
- Nut- No
- Approvals- UL & CUL Listed
Mencom MAC-3FP-5M 3 Pin Female 5 Meter 1/2-20 Molded Cable
