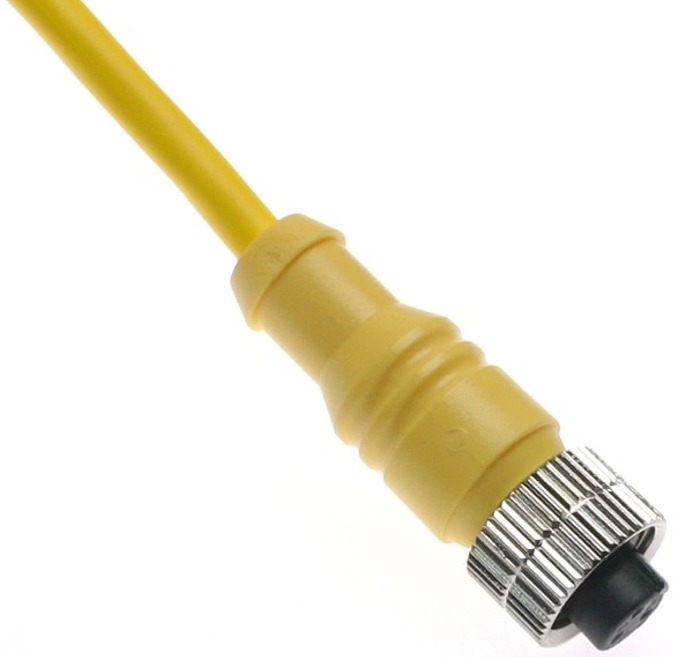

The Mencom MAC-2FP-1M Micro AC (1/2-20) female straight cordset features a 2 pin insert, 20 gauge wire and 1 meter of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and provide plug and play solutions for various applications. While comparable in appearance, they have a different wiring color code than MDC series M12 connectors.

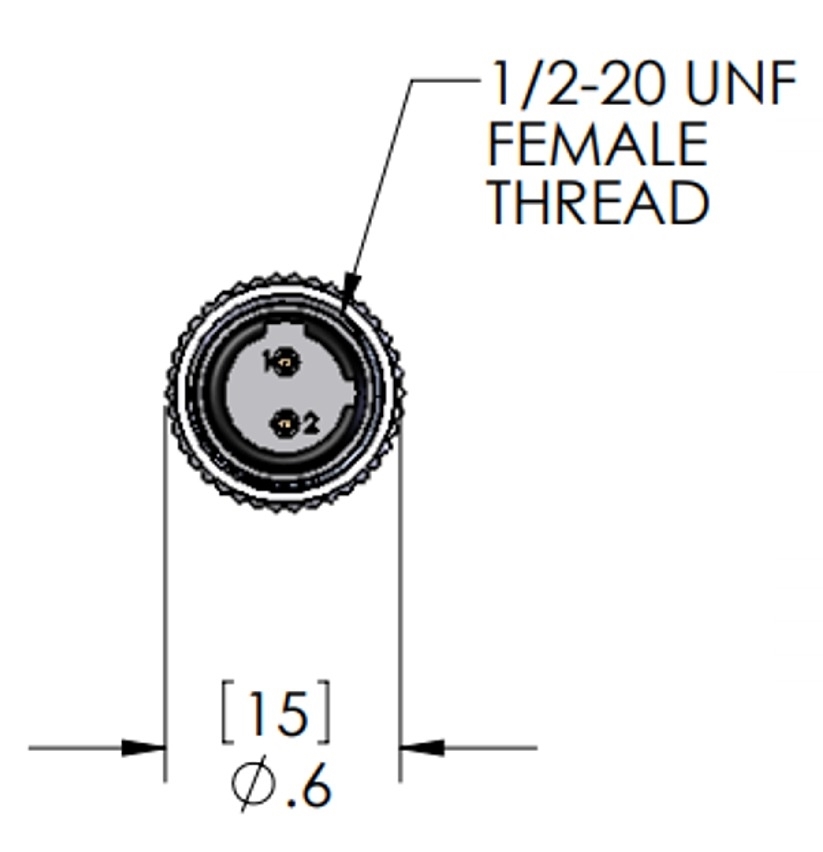

Pin #1 - Brown
Pin #2 - Blue

Specifications

• Body- Yellow PVC
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 22/2 AWM Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 4 Amps
• Wire Gauge- 20
• Pin Count- 2

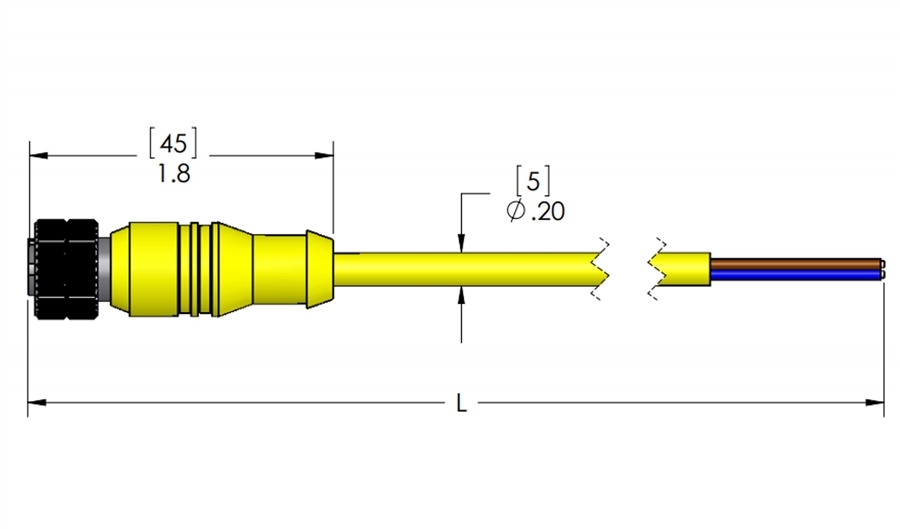

• Cable Length- 1 meter (3.28 ft)
• Cable O.D.- 0.2
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head- Female Straight
• Coupling Thread- Female
• Mating Thread / Type Head- 1/2-20UN2
• Nut- No
• Approvals- UL & CUL Listed

Mencom MAC-2FP-1M 2 Pin Female 1 Meter 1/2-20 Molded Cable
