Mencom M23 connectors bring plug and play capability to a number of applications including automation, transport, power generation, shipbuilding and medicine. The Mencom MCVP-12FP-10M-R M23 Female Right Angle Cordset features a 12 Pin insert, 18 & 22 gauge wire and 10 meters of cable. The shell is nickel plated brass with gold plated copper alloy contacts. The black PUR cable is rated at 300V and 6/2 A. Rated IP67. These connectors are particularly ideal for the valve manifolds used in fluid power systems.
Can be compatible with certain Turck Multifast and Brad Harrison/Molex M23 connectors
Specifications
- Body- Black PUR
- Contacts- Gold Plated Copper Alloy

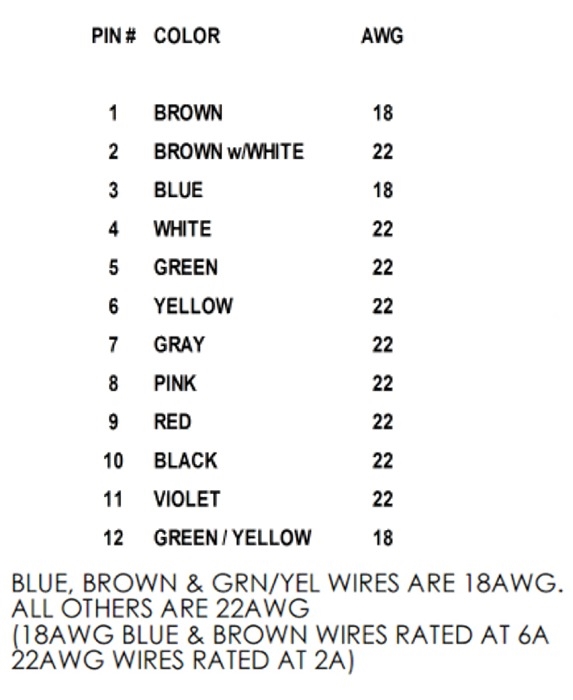

- Cable- 18/3, 22/9 w/ Foil Shield
- Volts- 300V
- Amps- 6/2 Amps
- Wire Gauge- 18/22
- Pin Count- 12
- Shielding- Yes
- Cable Length- 10 Meters (32.8')
- Cable O.D.- 0.38
- Temperature- -40 C to 80 C (-40 F to 176 F)
- Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- M23
- Ground Wire- Yes
- Nut- No
- Approvals- UL & CUL Listed
