Mencom M12 Receptacle, 5 Pole, Male Straight, 4A, M12

The Mencom MDC-5MR-PCB Micro DC (M12) male straight receptacle features a 5 Pin insert and M12 thread size. The body is polyamide with gold plated copper alloy contacts. The MDC-5MR-PCB is rated at 250V. Rated IP 69. Mencom MDC receptacles are adaptable and provide plug and play solutions for various applications. Note: The ground pin is no longer a part of the 5 pin male M12 inserts

Specifications

• Body- Polyamide
• Metal Hardware- Nickel Plated Brass
• Contacts- Gold Plated Copper Alloy

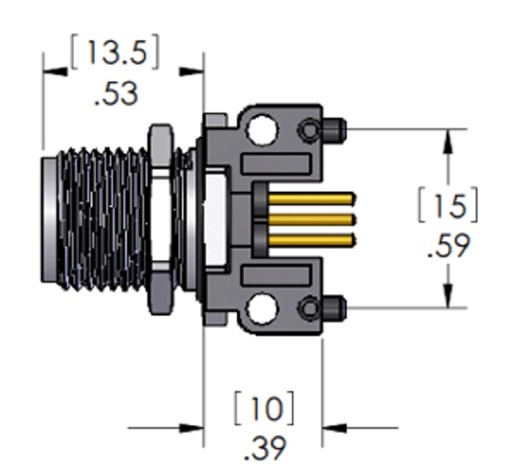

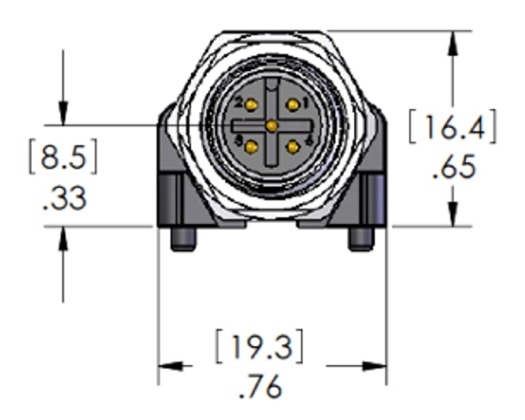

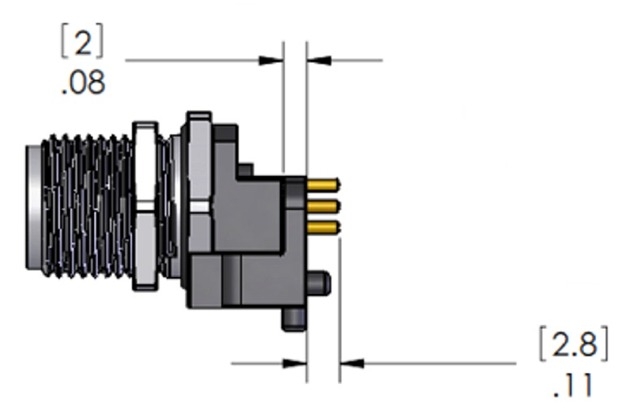

• Dimensions- 1.03" Length x 0.76" Width x 0.65" Height
• Rated Voltage- 250V
• Rated Current- 4 Amps
• Pin Count- 5
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Temperature- -40 C to 105 C (-40 F to 221 F)
• Orientation Head- Male Straight
• Coupling Thread- Male
• Mounting Thread- M12
• Mating Thread- M12
• Mounting Style- Front Mount
• Nut- Yes
• Termination- PCB
• Approvals- UL & CUL Listed
