Mencom Ethernet Receptacle, 4 Pole, Female, 1/2 NPT, 2 M

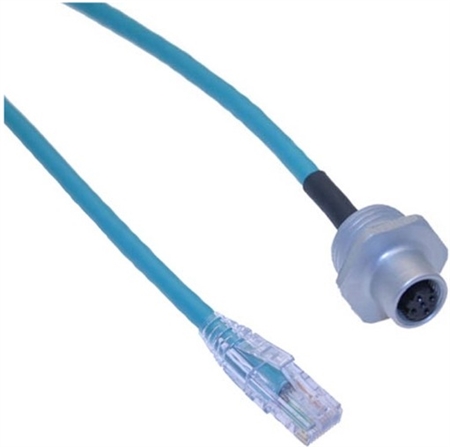

Mencom Ethernet Receptacle Female Straight / RJ45 Plug - MDE45-4FR-RJ45-2-2M
Mencom MDE45-4FR-RJ45-2-2M Ethernet Receptacle, 4 Pole, Female, 1/2 NPT, 2 M

Alternative Views:
Price: $37.15
MFG P/N: MDE45-4FR-RJ45-2-2M
MFG: Mencom
Weight (lbs): 0.75



Availability: In Stock
Product Code: MDE45-4FR-RJ45-2-2M
Qty:


Description


The Mencom MDE45-4FR-RJ45-2-2M Ethernet female straight receptacle to RJ45 plug features a 4 pin insert with M12 D-coded mating thread and 2 meters of oil resistant PVC teal cable. The shell is clear anodized aluminum with gold plated copper alloy contacts. The MDE45-4FR-RJ45-2-2M has a rated voltage of 42V and a rated current of 1.5A. Operating Temperature: -40 F to 176 F (-40 C to 80 C). Rated IP 69. Mencom Ethernet receptacles can be used for a number of different applications and are made for extreme environments.

Specifications

  • Shell- Clear Anodized Aluminum
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Cable- CAT 5e with Teal PVC Jacket
  • Rated Voltage- 42 VDC
  • Rated Current- 1.5 Amps
  • Wire Gauge- 24
  • Pin Count- 4
  • Cable Length- 2 Meter (6.56 feet)
  • Cable OD- 0.24
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head 1- Female Straight
  • Orientation Head 2- RJ45 Plug
  • Coupling Thread 1- Female
  • Coupling Thread 2- RJ45 Plug
  • Mounting Thread- 1/2" NPT
  • Mating Thread / Type Head 1- M12 D-Code
  • Mounting Style- Front Mount
  • Nut- No

Mencom Ethernet Receptacle Part Number Guide

Mencom MDE45-4FR-RJ45-2-2M Receptacle
