Mencom Ethernet Cordset, 4 Pole, Male/RJ45, 2 Meter

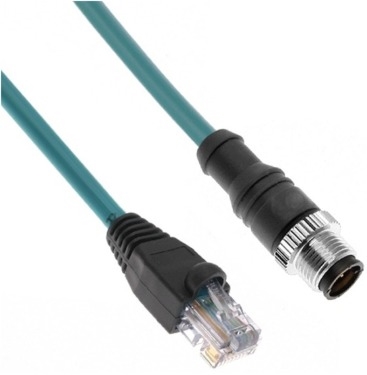

Mencom Ethernet Cordset Male Straight / RJ45 Plug - MDE45-4MP-RJ45-2M
Mencom MDE45-4MP-RJ45-2M Ethernet Cordset, 4 Pole, Male/RJ45, 2 Meter

Alternative Views:


Price: $40.31
Note: Please call or email [email protected] for alternative
MFG P/N: MDE45-4MP-RJ45-2M
MFG: Mencom
Weight (lbs): 0.22

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MDE45-4MP-RJ45-2M
Qty:


Description


The Mencom MDE45-4MP-RJ45-2M Ethernet male straight cordset features a 4 pin insert with M12 D-coded mating thread, an RJ45 plug and 2 meters of oil resistant teal PVC cable. The body is black PVC with gold plated copper alloy contacts. The MDE45-4MP-RJ45-2M has a rated voltage of 42V and a rated current of 1.5A. Rated IP 69. Operating temperature: -20 C to 80 C (-4 F to 176 F). Mencom industrial Ethernet connectors and cordsets can be used for a number of different applications and are made for extreme environments.

Pin #1 - White/Orange
Pin #2 - White/Green
Pin #3 - Orange
Pin #4 - Green

Specifications

  • Body- Black PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Rated Voltage- 42 VDC
  • Rated Current- 1.5 Amps
  • Wire Gauge- 24
  • Pin Count- 4
  • Cable Length- 2 Meters (6.56 Feet)
  • Cable OD- 0.24
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Ethernet Cable Standard- Cat5e
  • Orientation Head 1- Male Straight
  • Orientation Head 2- RJ45 Plug
  • Coupling Thread 1- Male
  • Coupling Thread 2- RJ45 Plug
  • Mating Thread / Type Head 1- M12 D-Code
  • Nut- No

Mencom Ethernet Cordset Part Number Guide

Mencom 2 Meter Ethernet Cable MDE45-4MP-RJ45-2M
