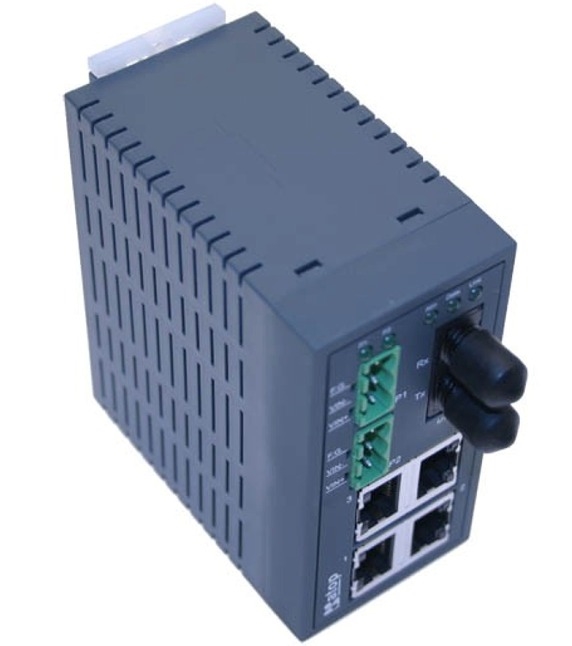

The Mencom E45UM-4-FM unmanaged entry level fast Ethernet switch has four 10/100BaseTX RJ45 ports and one multimode ST style 2KM fiber port. The redundant power inputs offer a greater level of safety, while the mounting options provide greater convenience. Mencom Ethernet switches are made to stand up to the demanding conditions of industrial applications, including electromagnetic interference protection, and support of various security protocols. UL & CUL listed. Rated IP30. Also known as Atop EH2005-FM
- Broadcast storm protection
- Supports IEEE 802.3/ 802.3u/ 802.3x
- 10/100M, Full/Half-Duplex, MDI/MDI-X auto-detection
- Dual DC power inputs
- High strength plastic housing
- DIN-Rail or wall mounting
- 5 year manufacturer's warranty
Specifications
Ethernet
- Transmission Rate- 10/100Mbps
- Number of Ports- 5 Ports
- 10/100Mbps- 5 Ports
- Type of Ports- Four 10/100 RJ45 Ports, One Multimode 2KM ST Style Fiber Port
Power Management
- Input- 9-30V DC
- Connector- Two 3 Pin 5.08mm Pitch Terminal Blocks
- Power Consumption- 5.4 Watts Max.
Environmental
- Dimensions- 3.5" Height x 1.8" Width x 3.6" Length
- Operating Temperature- 0 C to 60 C (32 F to 140 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Humidity- 5-95% RH (non-condensing)
Approvals
- Safety- UL60950-1
- EMC- FCC Class A, CE Class A
- EMS- ESD Level 2, RS Level 2, EFT Level 2, Surge Level 2, CS Level 2, PFMF Level 1, DIP
- MTBF- 107296 (EH2005-Fm)
- IP Protection- IP 30
Mencom E45UM-4-FM 5 Port Entry Level Industrial Ethernet Switch
|
|
|
 |
|
 |
|
