Mencom 1/2-20 Cordset, 6 Pole, Female Right Angle, 1 M, Shielded

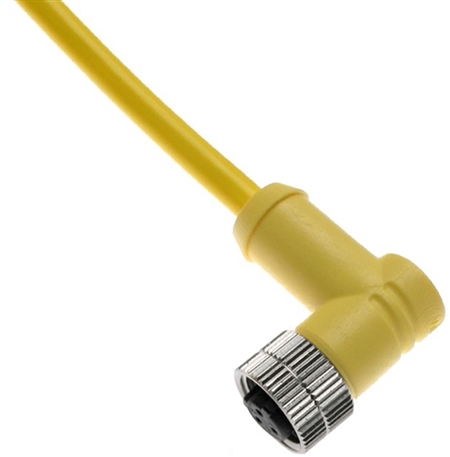

Mencom Shielded Micro AC Cordset - MACB-6FP-1M-R
Mencom MACB-6FP-1M-R 1/2-20 Cordset, 6 Pole, Female Right Angle, 1 M, Shielded

Alternative Views:
Price: $41.28
Note: Please call or email [email protected] for alternatives
MFG P/N: MACB-6FP-1M-R
MFG: Mencom
Weight (lbs): 0.2

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: MACB-6FP-1M-R
Qty:


Description


The Mencom MACB-6FP-1M-R Micro AC (1/2-20) female right angle cordset with braided shield has a 6 pin insert, 22 AWG wire and 1 meter of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and have a C-coded dual keyway. While comparable in appearance, they have a different color code than MDC series M12 connectors.

Pin #1 - Red/White
Pin #2 - Red
Pin #3 - Green/Yellow
Pin #4 - Red/Yellow
Pin #5 - Red/Black
Pin #6 - Red/Blue

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/6 Yellow PVC Jacket w/ Braided Shield
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 6
  • Cable Length- 1 meter (3.28 ft)
  • Cable O.D.- 0.24
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1/2-20UN2
  • Nut- No
  • Shielding- Yes
  • Approvals- UL & CUL Listed

MACB-6FP-1M-R Shielded 1 Meter 6 Pin 1/2-20 Molded Cable
