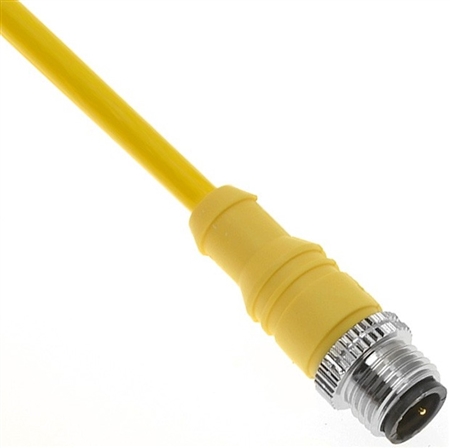

The Mencom MAC-4MPX-6M Micro AC (1/2-20) male straight cordset has a 4 pin insert, 18 AWG wire and 6 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and have a dual C-coded keyway. While similar in appearance to the MDC M12 connectors, they do have a different wiring color code & keyway.
Pin #1 - Red/Black
Pin #2 - Red/White
Pin #3 - Red
Pin #4 - Green/Yellow
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 18/4 Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 18
- Pin Count- 4
- Cable Length- 6 meter (19.68 ft)
- Cable O.D.- 0.29
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Male Straight
- Coupling Thread- Male
- Mating Thread / Type Head- 1/2-20UN2
- Nut- No
- Approvals- UL & CUL Listed
6 Meter 4 Pin 18 AWG Male 1/2-20 Cable MAC-4MPX-6M
