Mencom 1/2-20 Cordset, 4 Pole, Male Straight, 6 M

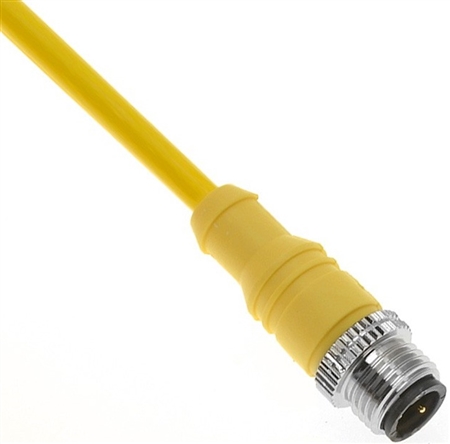

Mencom 4 Pin Micro AC Cordset - MAC-4MP-6M
Mencom MAC-4MP-6M 1/2-20 Cordset, 4 Pole, Male Straight, 6 M

Alternative Views:


Price: $39.64
MFG P/N: MAC-4MP-6M
MFG: Mencom
Weight (lbs): 0.5



Availability:
In Stock
Product Code: MAC-4MP-6M
Qty:


Description


The Mencom MAC-4MP-6M Micro AC (1/2-20) male straight cordset has a 4 pin insert, 22 AWG wire and 6 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and have a dual C-coded keyway. While similar in appearance to the MDC M12 connectors, they do have a different wiring color code & keyway.

Pin #1 - Red/Black
Pin #2 - Red/White
Pin #3 - Red
Pin #4 - Green/Yellow

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/4 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 4
  • Cable Length- 6 meter (19.68 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread / Type Head- 1/2-20UN2
  • Nut- No
  • Approvals- UL & CUL Listed

6 Meter 4 Pin 22 AWG Male 1/2-20 Cable MAC-4MP-6M
