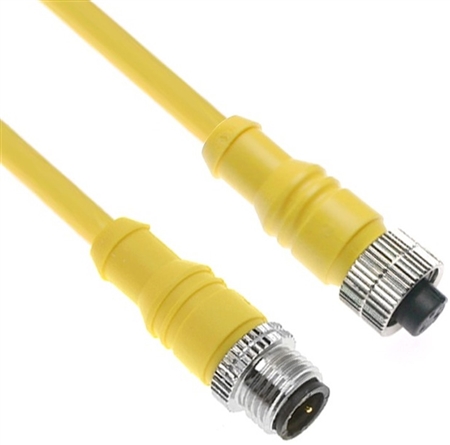

The Mencom MAC-4MFP-2M Micro AC (1/2-20) male / female straight cordset has a 4 pin insert, 22 AWG wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and have a C-coded dual keyway. While similar in size and shape, they have a different wiring color code than MDC series M12 connectors.

Pin #1 - Red/Black
Pin #2 - Red/White
Pin #3 - Red
Pin #4 - Green/Yellow

Specifications

• Body- Yellow PVC
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 22/4 AWM 2661 Yellow PVC Jacket
• Rated Voltage- 300 V
• Rated Current- 4 Amps
• Wire Gauge- 22
• Pin Count- 4
• Cable Length- 2 meter (6.56 ft)
• Cable O.D.- 0.2
• Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
• Orientation Head 1- Male Straight
• Orientation Head 2- Female Straight
• Coupling Thread 1- Male
• Coupling Thread 2- Female
• Mating Thread / Type Head- 1/2-20UN2
• Nut- No
• Approvals- UL & CUL Listed

Mencom MAC-4MFP-2M 4 Pin Extension 1/2-20 Molded Cable
