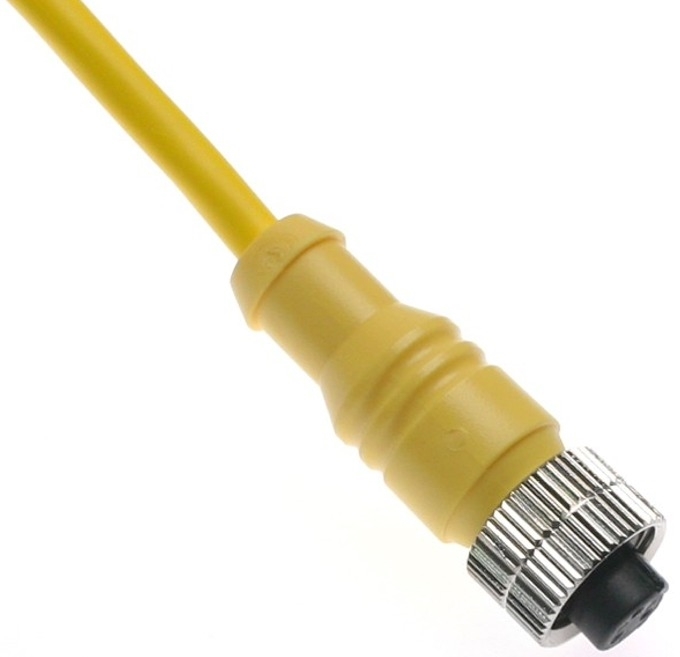

The Mencom MAC-4FP-10M Micro AC (1/2-20) female straight cordset has a 4 pin insert, 22 AWG wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and have plug & play capability. While similar in appearance to the MDC M12 connectors, they do have a different wiring color code & keyway.
Pin #1 - Red/Black
Pin #2 - Red/White
Pin #3 - Red
Pin #4 - Green/Yellow
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/4 AWM Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 4
- Cable Length- 10 meter (32.8 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- 1/2-20UN2
- Nut- No
- Approvals- UL & CUL Listed
10 Meter 4 Pin 22 AWG Female 1/2-20 Molded Cable MAC-4FP-10M
