Mencom 1/2-20 Field Wireable Plug, 3 Pole, Male Right Angle, 6-8mm, PG 9

Mencom 3 Pin Micro AC 1/2-20 Hardwired Plug - MAC-3MP-FW09-R
Mencom MAC-3MP-FW09-R 1/2-20 Field Wireable Plug, 3 Pole, Male Right Angle, 6-8mm, PG 9

Alternative Views:
Price: $16.72
MFG P/N: MAC-3MP-FW09-R
MFG: Mencom
Weight (lbs): 0.05



Availability: In Stock
Product Code: MAC-3MP-FW09-R
Qty:


Description

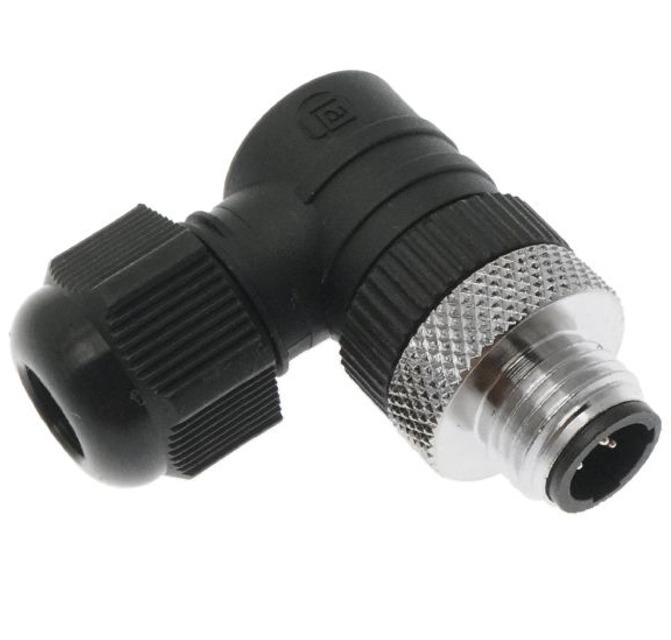

The Mencom MAC-3MP-FW09-R Micro AC (1/2-20) male right angle field wireable plug has a 3 pin insert. The PG 9 cable entry accepts 6-8mm. The body is black polyamide with gold plated copper alloy contacts. The MAC3MPFW09R has a rated voltage of 250V and a rated current of 4A. Rated IP 67. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC hardwired plugs use an 1/2-20 coupling nut and have a dual keyway. Screw terminal connection.

Specifications

  • Body- Black Polyamide
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Seal- NBR
  • Overall Dimensions- 1.3" Length x 1.5" Width x 0.8" Height
  • Rated Voltage- 250 V
  • Rated Current- 4 Amps
  • Pin Count- 3
  • Cable O.D. Range- 6-8mm, PG 9
  • Wire Gauge- 18-24 AWG
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Male Right Angle
  • Coupling Thread- Male
  • Mating Thread/Type Head- 1/2-20UN2
  • Nut- No

3 Pin PG 9 Male 1/2-20 Right Angle Hardwired Plug MAC-3MP-FW09-R
