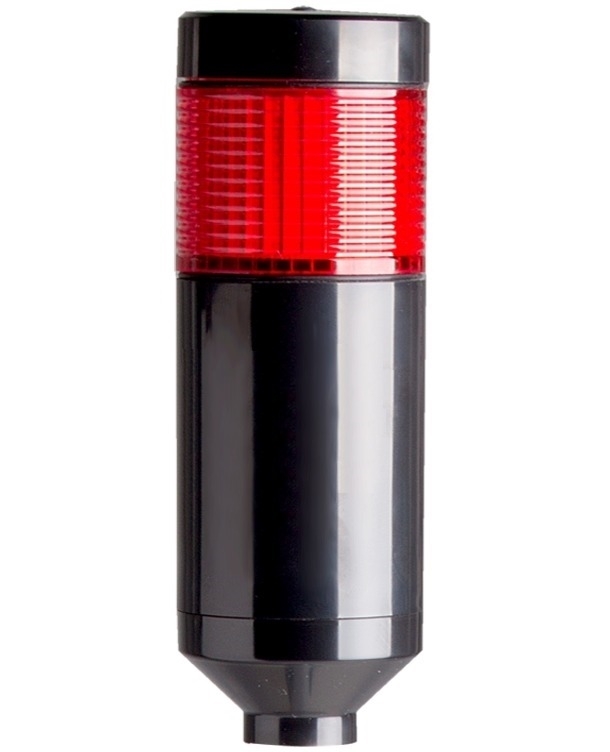

Menics PTE-T-102-R-B 1 Stack LED Tower Light, Red
Menics PTE-T-102-R-B 56 mm 1 Stack LED Tower Light, Terminal Connection, Steady, Pole Mount, 24V
Larger Photo




Menics 56 mm 1 Stack LED Tower Light, Terminal Connection, Steady, Pole Mount, 24V

Price: $72.64
Note: Please call or email sales@majorelectronix.com for alternatives
MFG P/N: PTE-T-102-R-B
MFG: Menics
Weight (lbs): 0.5

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: PTE-T-102-R-B
Qty:

Description


The Menics PTE-T-102-R-B 1 stack LED tower light has a 56mm diameter and is rated for 24V. It has a red lens with a steady light and has a terminal connection. The PTE series has a modular system, to make it easier to switch out parts if needed. It has a prism cut lens for optimal light distribution. The tower light itself comes preassembled. Perfect for applications in factory automation. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

  • Light Operation- Steady
  • Power Supply- 24V AC/DC
  • Mounting/Connection- Pole Mount (with pole & base) or Wall Mount (with pole & bracket) / Terminal Connection (see mounting accessories below)
  • Lens Color- Red
  • Number of LED Tiers- 1 Stack

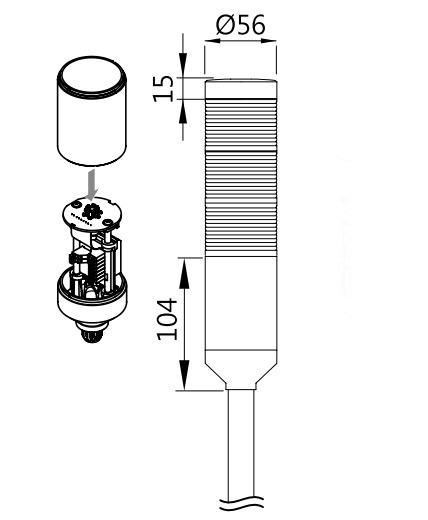

  • Dimensions (Tower Light Only)- 159 mm Height x 56 mm Diameter (6.26" x 2.2")
  • Current Consumption- 0.033 Amps
  • Vibration- 0.75 mm at 10-55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets in any direction)
  • Approvals- CE, UL, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

Menics PTE-T-102-R-B 1 Stack Red Terminal Connection 24V LED Tower Light
