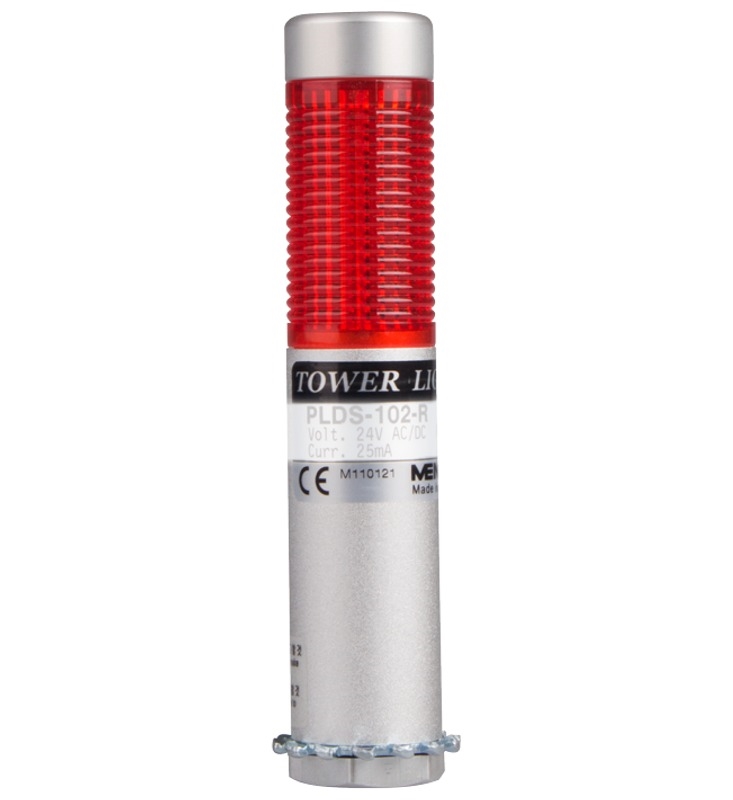

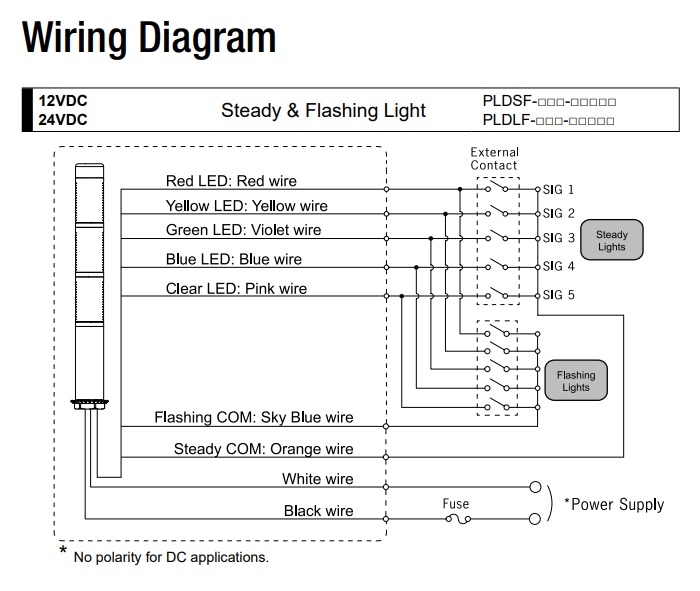

The Menics PLDSF-102-R 1 stack 24V LED tower light has a 25 mm diameter with a red lens and a steady & flashing light. Lens is prism cut, to provide an even light distribution. This PLD series light has a 65 mm anodized aluminum body and is useful for small device applications. The signal light itself comes pre-assembled, with a lead wire connection. Lock nut and fixing bolt for direct surface mounting included. See the wiring diagram in the images above to view the connections for steady or flashing mode. Rated IP 52. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Surface Mount or Wall Mount (See wall mount bracket below)
• Light Operation- Steady
• Power Supply- 24V DC
• Current Consumption- 0.03 Amps
• Lens Colors- Red
• Number of Tiers- 1 Stack
• Lens Material- Polycarbonate Resin
• Housing Material- Anodized Aluminum w/ ABS Plastic Cap
• Hardware- Aluminum Fixing Bolt & Steel Lock Nut

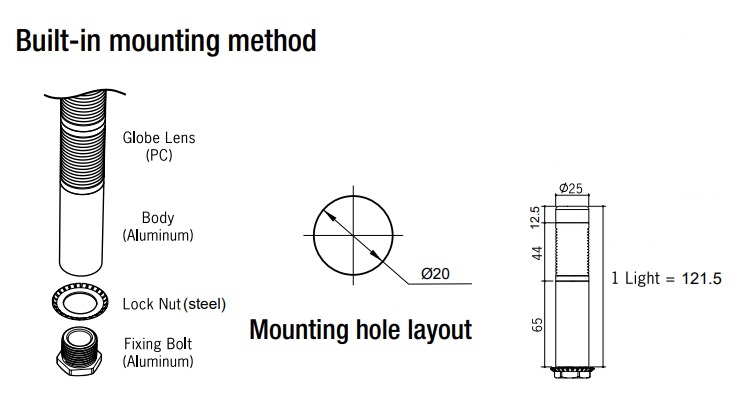

• Dimensions (Tower Light Only)- 121.5 mm Height x 25 mm Diameter (4.78" x 1")
• Buzzer- None
• Flash Rate- 80 times per minute
• Vibration- 0.75 mm @10~55Hz
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Insulation Resistance- Over 100 MOhm (500V DC mega)
• Ambient Humidity- 45-85% Relative Humidity
• Recommended Wire Size- 1007 UL / 22 AWG
• IP Protection- IP 52 (Protection from harmful dust deposits and water drops up to 15 degrees from vertical)
• Approvals- CE, RoHS Compliant

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

PLDSF-102-R 24V 1 Tier Red Short LED Tower Signal Light
