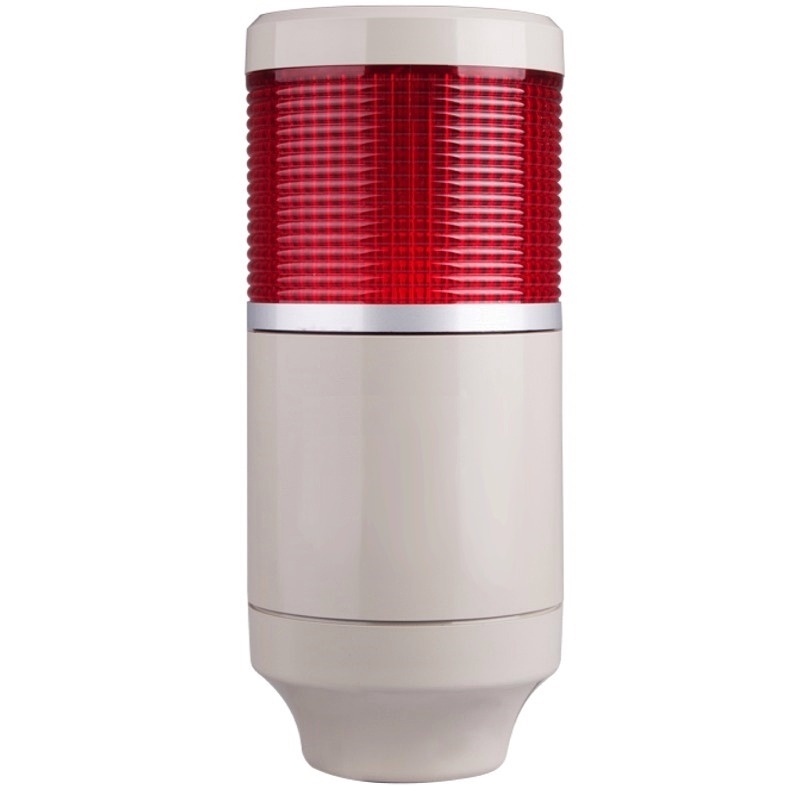

The Menics MT8B1BL-R 1 stack tower light has a 85mm diameter and is rated for 110-120V. It has a red lens, with a steady light. Lens is prism cut, which offers an even light distribution. The signal light itself comes pre-assembled and pre-wired. It can be used around machines and in high vibration environments due to the vibration-absorbing rubber embedded inside. Uses incandescent bulb (see below for optional LED bulb). Rated IP 54. Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request. See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Pole Mount or Wall Mount (with pole) - see mounting accessories below
• Light Operation- Steady
• Power Supply- 110-120V AC
• Current Draw- 0.8 Amps
• Lead Length- 25"
• Lens Colors- Red
• Lens Material- Polycarbonate Resin
• Number of Tiers- 1 Stack
• Dimensions (Tower Light Only)- 191 mm Height x 85 mm Diameter (7.52" x 3.35")
• Vibration- 3 mm @10~55Hz
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Ambient Humidity- 45-85% Relative Humidity
• Wire Size- 1007 UL / 22 AWG
• IP Protection- IP 54 (Protected from harmful dust deposits and splashing water from any direction)
• Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

Menics MT8B1BL-R 85mm 1 Tier Red 110V Tower Signal Light
