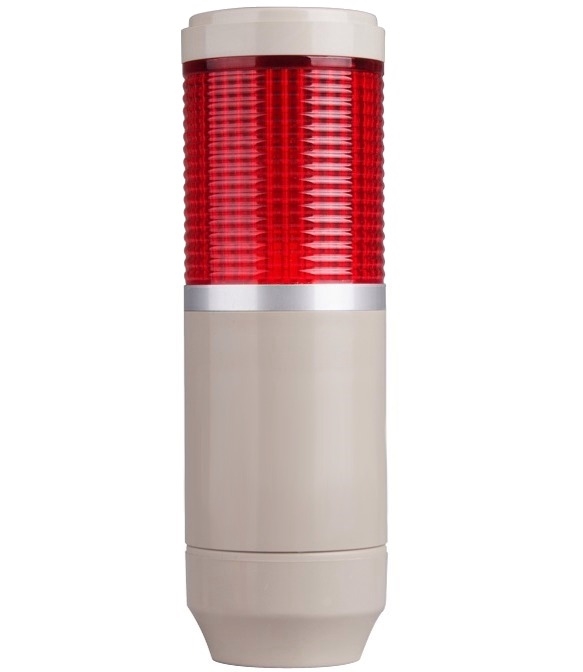

The Menics MT5B1CL-R 1 stack tower light has a 56mm diameter and is rated for 220-240V. It has a red lens, with a steady light. Lens is prism cut, providing an even light distribution. The signal light itself comes pre-assembled and pre-wired. It has integrated vibration-absorbing rubber for use around machines and in other high-vibration environments. Comes standard with incandescent bulb (see optional LED bulb below). Rated IP 54. Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request. See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Pole Mount (with pole & base) or Wall Mount (with pole & bracket) - see mounting accessories below
• Light Operation- Steady
• Power Supply- 220-240V AC
• Current Draw- 0.04 Amps
• Lead Length- 25"
• Lens Colors- Red
• Lens Material- Polycarbonate Resin
• Number of Tiers- 1 Stack
• Dimensions (Tower Light Only)- 178 mm Height x 56 mm Diameter (7" x 2.2")
• Vibration- 3 mm @10~55Hz
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Ambient Humidity- 45-85% Relative Humidity
• Wire Size- 1007 UL / 22 AWG
• IP Protection- IP 54 (Protected from harmful dust deposits and splashing water from any direction)
• Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

Menics MT5B1CL-R 56mm 1 Tier Red 220-240V Tower Signal Light
