The Menics MS56M-FF-LC 56mm wall mount LED beacon light is 100-240V AC with multi-color steady or flashing LED. External contact, lead wire connection. Flash rate of 80/min (DC). Produces one of 7 colors depending on the wiring. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Power Supply- 100-240V AC (50/60Hz)
- Mounting- Wall mounted (see mounting bracket below)
- Output Method- External Contact, Lead Wire
- LED Colors- Red, Yellow, Green, Cyan, Blue, Pink, White
- Lens Color- White
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic Resin
- Lead Length- 800mm (31.5")
- Light Style- Steady & Flashing
- Flash Rate- 80 times per minute
- Buzzer- None
- Current Consumption- 0.08 Amps (Steady)

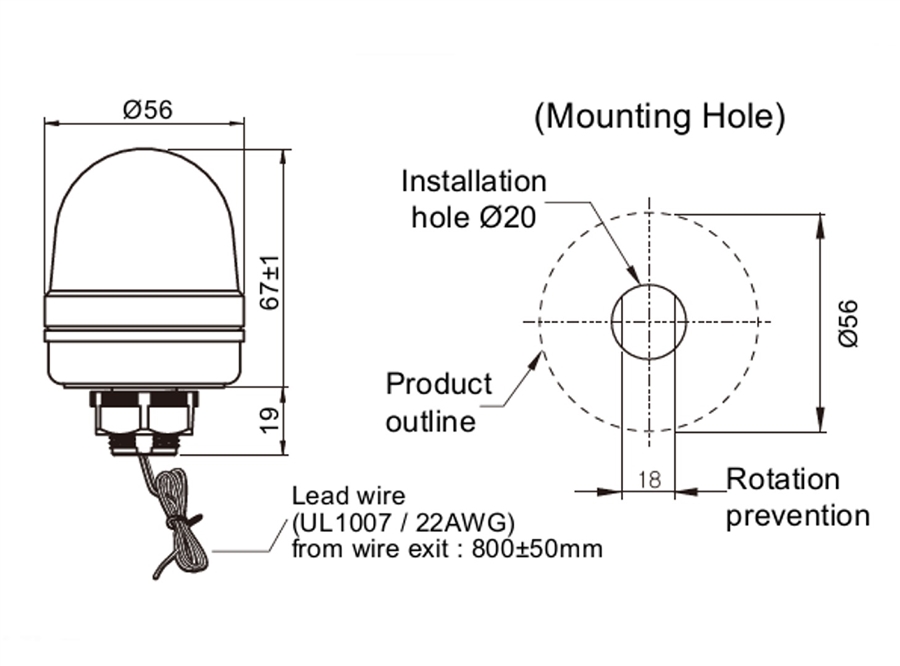

- Dimensions- 86 mm Height x 56 mm Diameter (3.4" x 2.2")
- Connection- UL1007 / 22 AWG
- Vibration- 0.75mm @ 10-55Hz
- Ambient Temperature- -15 C to 40 C (5 F to 104 F)
- Storage Temperature- -25 C to 70 C (-13 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- IP Protection- IP 65 (front), (Total protection from dust and water jets from any direction)
- Approvals- RoHS, CE
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
Menics MS56M-FF-LC 56mm 100-240V Multi-Color LED Beacon Light
|
|
|
