Menics 135mm Beacon Light, 100-240V, Red, Flashing / Rotating, w/ Siren


Menics 135mm Beacon Light, 100-240V, Red, w/ Siren
Menics MS135T-SFF-R 135mm Beacon Light, 100-240V, Red, Flashing / Rotating, w/ Siren

Alternative Views:


Price: $172.00
MFG P/N: MS135T-SFF-R
MFG: Menics
Weight (lbs): 1.2



Availability:
In Stock
Product Code: MS135T-SFF-R
Qty:

Description


The Menics MS135T-SFF-R 135mm beacon warning light with siren is 100-240V AC with a red lens and rotating, flashing LED. Flash rate of 240 times/minute. Rotation rate is adjustable between 60-300 rpm. Siren volume is adjustable between 55-80 dB (see Instructions tab). Siren options include fire, police, and ambulance. Designed to be noticed from a distance, even if outside on a clear day. The black body is resistant to weather and UV light. Light can be on without the siren sound, depending on how it is wired. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Siren Sounds

Fire
Police
Ambulance

Specifications

  • Light Type- Flashing/Rotating w/ Siren
  • Mounting- Stud mounted (see mounting bracket below)
  • Power Supply- 100-240V AC
  • Lens Color- Red
  • Lead Length- 500mm (19.7")

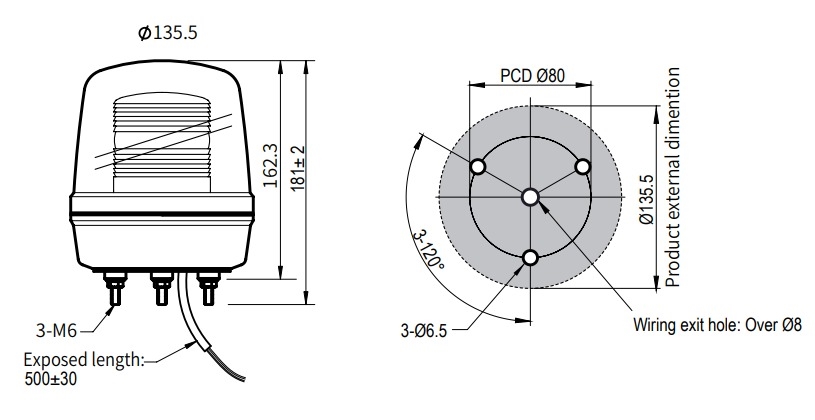

  • Dimensions- 181 mm Height x 135 mm Diameter (7.13" x 5.31")
  • Current Consumption- 0.14 Amps
  • Flash Rate- 240 times per minute
  • Rotation Rate- 60-300 rotations per minute (rotates clockwise)
  • Volume- 55-80 decibels @ 1 Meter (see below for model without sound)
  • Vibration- 10-55Hz (1 min.cycle) Double amplitude 0.75mm X, Y, Z
  • Ambient Temperature- -15 C to 50 C (5 F to 122 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL2464 / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets from any direction)
  • Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
