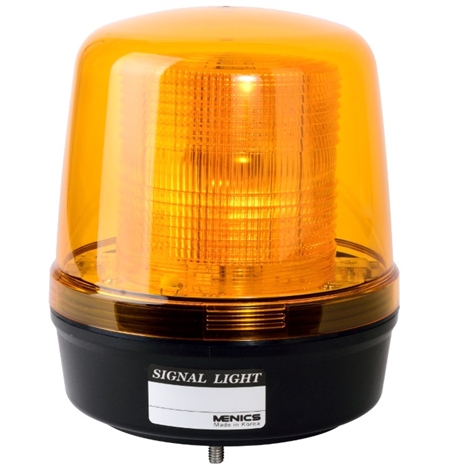

Menics 135mm Beacon Light, 12-24V, Yellow, Flashing / Rotating


Menics 135mm Beacon Light, 12-24V, Yellow
Menics MS135T-R00-Y 135mm Beacon Light, 12-24V, Yellow, Flashing / Rotating

Alternative Views:


Price: $155.25
MFG P/N: MS135T-R00-Y
MFG: Menics
Weight (lbs): 1.2



Availability:
In Stock
Product Code: MS135T-R00-Y
Qty:

Description


The Menics MS135T-R00-Y 135mm beacon warning light is 12-24V DC with a yellow lens and rotating, flashing LED. Flash rate of 240 times/minute. Rotation rate is adjustable between 60-300 rpm (see Instructions tab). Designed to be seen from a distance, even when outside on a clear day. The black body is resistant to weather and UV light. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

  • Light Type- Flashing/Rotating
  • Mounting- Stud mounted or Pole mounted (see mounting accessories below)
  • Power Supply- 12-24V DC
  • Lens Color- Yellow
  • Lead Length- 500mm (19.7")

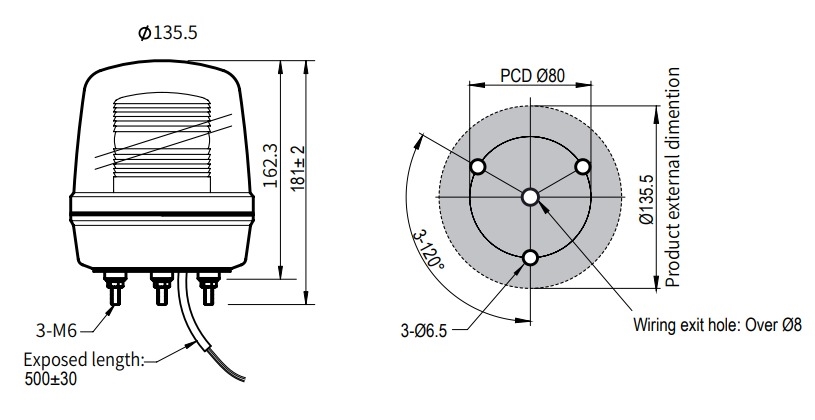

  • Dimensions- 181 mm Height x 135 mm Diameter (7.13" x 5.31")
  • Current Consumption- 0.75 Amps
  • Flash Rate- 240 times per minute
  • Rotation Rate- 60-300 rotations per minute (rotates clockwise)
  • Buzzer- None (see below for model with buzzer alarm)
  • Ambient Temperature- -15 C to 50 C (5 F to 122 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL2464 / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets from any direction)
  • Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
