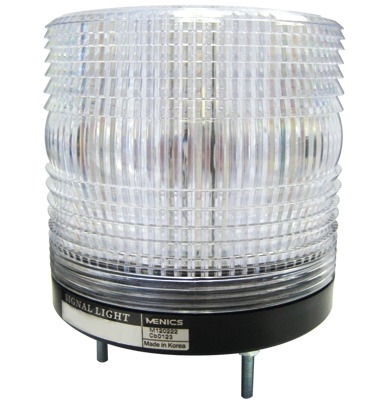

The Menics MS115M-FFF-RBG 115mm 3 in 1 beacon light is 90-240V AC with a clear lens and LED. Steady & flashing red/green/blue light. It has a high intensity LED with a 30,000 hr lifespan. Flash rate of the light is selectable (see Instructions tab). Prism cut lens provides even light distribution, while the clear color makes it easy to see even in brightly lit environments. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Light Type- LED Steady/Flashing
- Mounting- Stud mounted or Pole mounted (see mounting accessories below)
- Power Supply- 90-240V AC
- Lens Color- Clear
- Lens Material- Polycarbonate Resin
- LED Colors- Red/Green/Blue
- Dimensions- 121 mm Height x 115 mm Diameter (4.76" x 4.52")
- Current Consumption- 0.06-0.13 Amps
- Flash Rate- 80 or 240 times/minute
- Alarm Buzzer- None (see below for version with alarm)
- Vibration- 0.75mm @ 10-55Hz
- Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Recommended Wire Size- UL1007 / 22 AWG
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS, UL
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
