Menics 66mm Beacon Light, 24V, Green, Rotating


Menics 66mm Beacon Light, 24V, Green, Rotating

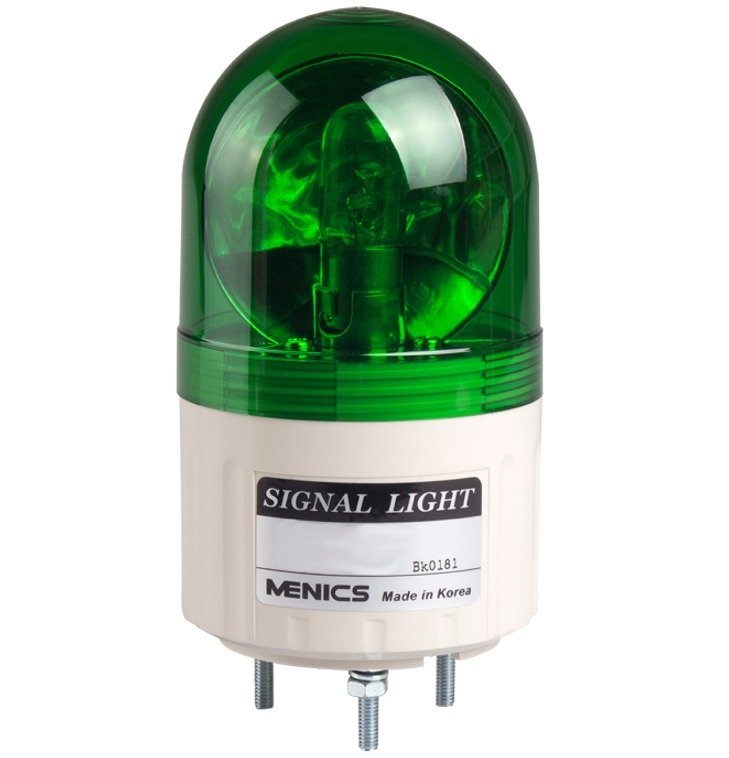

Menics MLG-02-G 66mm Beacon Light, 24V, Green, Rotating

Alternative Views:


Price: $28.70
MFG P/N: MLG-02-G
MFG: Menics
Weight (lbs): 0.2

Quantity in Stock :7


Availability:
In Stock
Product Code: MLG-02-G
Qty:

Description


The Menics MLG-02-G 66mm warning signal beacon light is 24V AC/DC with a smooth green lens and an incandescent light. Stud mounted. Rotates 130 times per minute. Gear rotation delivers long motor life and excellent visibility of light at long distances and at night. Used for a wide range of applications such as in small machines, construction, and road safety. Rated IP 42. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

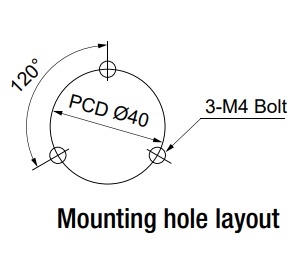

  • Mounting- Stud Mounting (see mounting accessories below)
  • Light & Bulb Type- Rotating Incandescent
  • Power Supply- 24V AC/DC
  • Lens Color- Green
  • Lens Material- Polycarbonate Resin
  • Buzzer- None
  • Flashing- No
  • Current Draw- 0.3A, 8W
  • Brightness- 12 Lumens, 960 mcd
  • Rotation Rate- 130 times/minute
  • Dimensions- 130 mm Height x 66 mm Diameter (5.11" x 2.6")
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL1007 22 AWG
  • IP Protection- IP 42 (Protected against solid objects over 1.0 mm and falling drops of water, up to 15 degrees from vertical)
  • Approvals- RoHS, CE

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
