Menics 135mm Beacon Light, 220V, Red, Rotating, White Base


Menics 135mm Beacon Signal Light, 220V, Red, Rotating
Menics AVG-20-R 135mm Beacon Light, 220V, Red, Rotating, White Base

Alternative Views:


Price: $50.23
MFG P/N: AVG-20-R
MFG: Menics
Weight (lbs): 0.5

Quantity in Stock :14


Availability:
In Stock
Product Code: AVG-20-R
Qty:

Description


The Menics AVG-20-R 135mm signal beacon light is 220V AC with a red lens and an incandescent light. Rotates 150 times per minute. Stud mounted. Has a belt friction type construction, while featuring a reduced noise level. It offers exceptional visibility at long distances or in the dark. Perfect for applications such as large machines, road safety lights, and construction sites. Rated IP 42. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

  • Mounting- Stud Mounting (see mounting bracket below)
  • Light & Bulb Type- Rotating Incandescent
  • Power Supply- 220V AC
  • Lens Color- Red
  • Lens Material- Polycarbonate Resin
  • Buzzer- None (see below for version with alarm buzzer)
  • Current Draw- 0.11 Amps, 25 Watts
  • Brightness- 18 Lumens, 1430 mcd
  • Rotation Rate- 150 times per minute

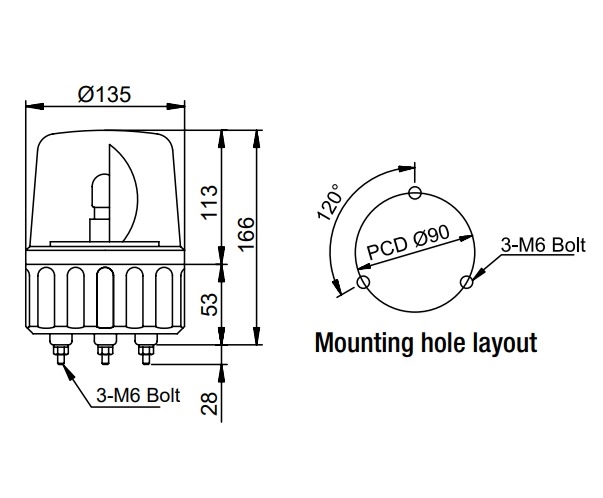

  • Dimensions- 166mm Height x 135mm Diameter (6.53" x 5.31")
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL1007, 18 AWG
  • IP Protection- IP 42 (Protected against solid objects over 1.0 mm and falling drops of water, up to 15 degrees from vertical)
  • Approvals- RoHS, UL, CE

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
