Menics 56 mm 1 Stack Andon Tower Light w/ Selector Switch Control Box, Red, 110V, 15Ft Cable, w/ Adjustable Buzzer

Menics ATESR-15-R-Z 1 Tier Tower Light, Red
Menics ATESR-15-R-Z 56 mm 1 Stack Andon Tower Light w/ Selector Switch Control Box, Red, 110V, 15Ft Cable, w/ Adjustable Buzzer

Alternative Views:
Price: $166.40
Note: Call 800-966-2345 for Lead Time
MFG P/N: ATESR-15-R-Z
MFG: Menics
Weight (lbs): 3



Availability: In Stock
Product Code: ATESR-15-R-Z
Qty:

Description

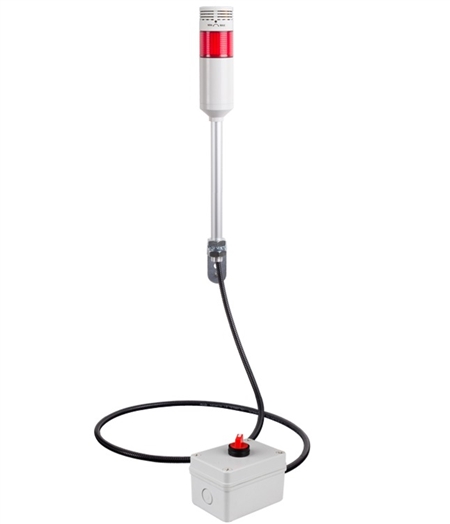

The Menics ATESR-15-R-Z 1 stack LED Andon tower light has a 56mm diameter and is rated for 110V. It has a red lens, with flashing light and 10-100 dB alarm. This signal light comes ready for use with a 9.45" pole attached and 2 position Deca selector switch in a Boxco control box, connected by a 15 ft cable. Made for wall mounting. Includes 6 foot power cord.

Specifications

  • Light Operation- Flashing
  • Power Supply- 110V AC
  • Lens Colors- Red
  • Number of LED Tiers- 1 Stack
  • Buzzer- 10-100 decibels
  • Dimensions (Tower Light Only)- 184mm Height x 56mm Diameter (7.24" x 2.2")
  • Pole Length- 240mm (9.45")
  • Cable Length- 15 feet
  • Dimensions (Control Box)- 110mm Height x 80mm Width x 72mm Depth (4.33" x 3.15" x 2.83")
  • Current- 0.017 Amps (Red), 0.15 (Buzzer)
  • Switching- Selector Switch Control Box
  • Flash Rate- 80 times per minute
  • Vibration- 0.75mm @10~55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity

Menics ATESR-15-R-Z 1 Tier Andon Tower Light w/ Selector Switch & Adjustable Alarm
