Menics 56 mm 5 Stack Andon Tower Light w/ Push Button Control Box, 110V, 10Ft Cable

Menics ATEPR-10-RYGBC 5 Tier Tower Light, Red Yellow Green Blue Clear
Menics ATEPR-10-RYGBC 56 mm 5 Stack Andon Tower Light w/ Push Button Control Box, 110V, 10Ft Cable

Alternative Views:
Price: $270.40
Note: Please call or email [email protected] for alternatives
MFG P/N: ATEPR-10-RYGBC
MFG: Menics
Weight (lbs): 4

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: ATEPR-RYGBC
Qty:

Description

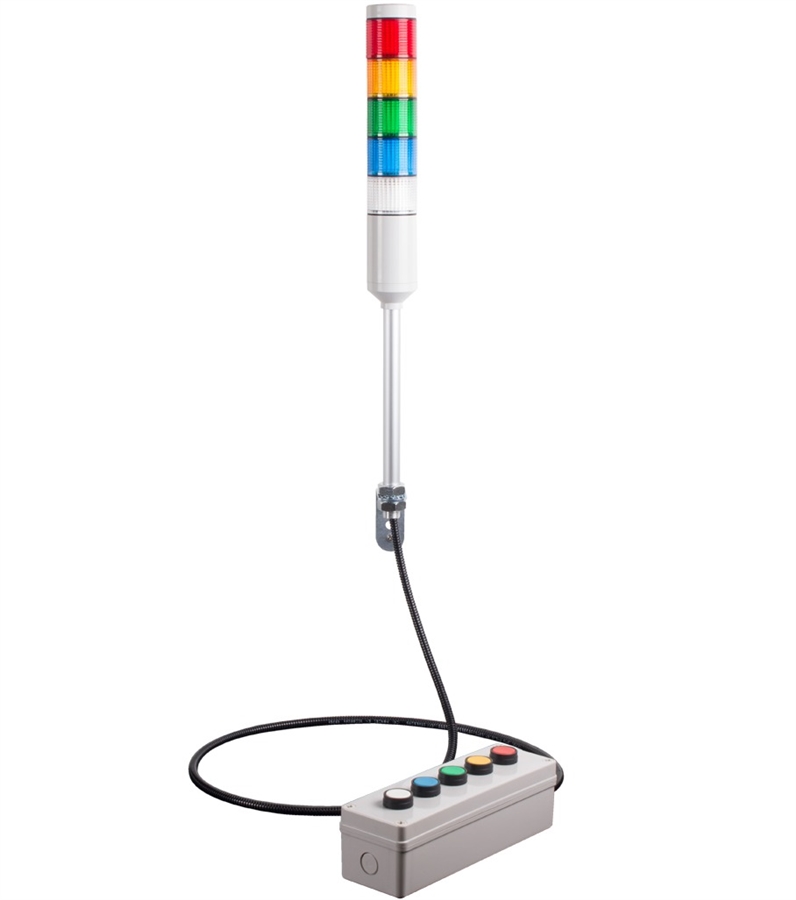

The Menics ATEPR-10-RYGBC 5 stack LED Andon tower light has a 56mm diameter and is rated for 110V. It has red, yellow, green, blue, & clear lenses, with flashing & steady lights. This signal light is ready for use with a 9.45" pole attached and Deca maintained push buttons in a Boxco control box, connected by a 10 ft cable. Designed for wall mounting. Comes with 6 foot power cord. Rated IP 65.

Specifications

  • Light Operation- Red: Flashing / Yellow Green Blue & Clear: Steady
  • Power Supply- 110V AC
  • Lens Colors- Red Yellow Green Blue Clear
  • Number of LED Tiers- 5 Stack
  • Buzzer- None

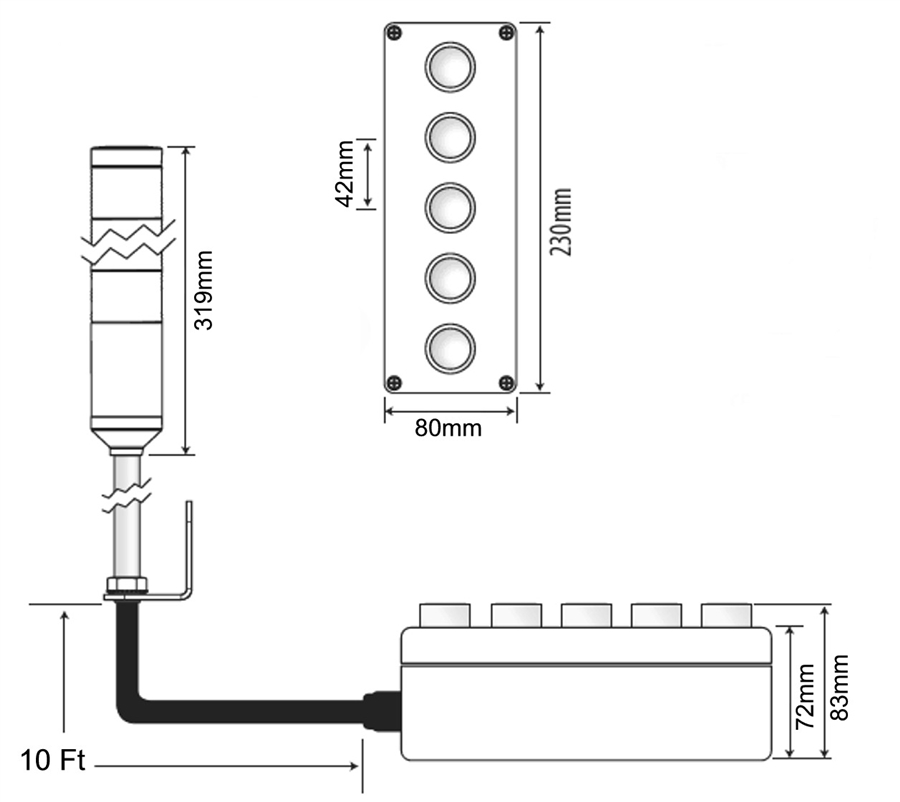

  • Dimensions (Tower Light)- 319mm Height x 56mm Diameter (12.56" x 2.2")
  • Pole Length- 240mm (9.45")
  • Cable Length- 10 feet
  • Dimensions (Control Box)- 230mm Height x 80mm Width x 72mm Depth (9" x 3.15" x 2.83")
  • Current- Red & Yellow: 0.017 Amps / Green Blue & Clear: 0.022 Amps
  • Switching- Push Button Control Box
  • Flash Rate- 80 times per minute
  • Vibration- 3mm @10~55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -40 C to 70 C (-40 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 65 (Totally protected from dust and water jets from any direction), NEMA 4x
  • Approvals- UL, CE, RoHS

Menics ATEPR-10-RYGBC 5 Tier 110V Andon Tower Light with Cable
