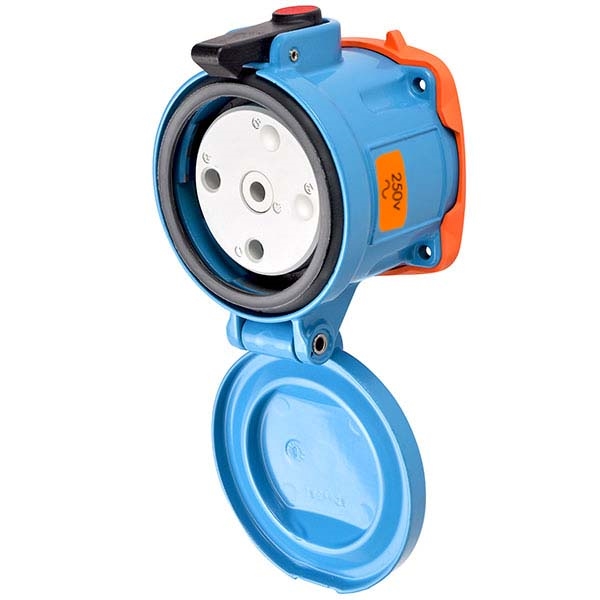

The Meltric 69-84072 DSN100 female receptacle is rated for 250V and 100A. It features 2 Poles plus ground. It has a wiring capacity of 10-2 AWG with a temperature range of -40 F to 140 F. The body is aluminum, coated with blue epoxy. It withstands exposure to certain substances, such as cleansing soap, gas, engine oil and ethyl alcohol. The lid opens up to 90 degrees. Type 4X for water tightness, rated IP 66 / IP 67. UL listed.
Note: Image is for reference, actual part may differ. Ground shipping only
Specifications
- Rated Voltage- 250V AC
- Rated Current- 100 Amps
- Overall Dimensions (closed)- 3.86" Width x 5.07" Height x 4.74" Depth
- Polarity- 2 Pole + Ground
- Switch Rating (AC only)- Branch Circuit & Motor Circuit Disconnect Switching
- Short Circuit Rating- 100kA Close & Withstand
- Impact Rating- IK09
- Temperature Range- -40 F to 140 F (-40 C to 60 C)
- Wiring Capacity- 10-2 AWG
- Terminal Type- Screw
- Environmental Rating- Type 4X, IP 66 / IP 67
- Listings- UL, CSA
Part of the Meltric DSN Decontactor series, the 69-84072 provides the utmost safety by eliminating exposure to arc flash. The durable construction is made to last through repeated use, without immediately needing replacements, thereby lowering costs. This power connector has a compact design that won't take up a lot of unwanted room. When attached to the compatible male inlet, it works well in wet or washdown applications in industrial environments, due to the watertight assembly. It features plug and play capability while providing a quick, easy disconnect. This also makes for more efficient operation, as it generates less downtime.
Safety shutter: Covers over contacts before plug is taken out to prevent contact with active components. Shutter is opened when the compatible plug is inserted
Spring loaded contacts: Ensures that the connection has the right amount of contact pressure. Balances out variations in construction and withstands wear and tear
Quick break mechanism: Disconnect by pushing the button, which breaks the circuit and detaches the plug.
Enclosed arc chamber: Any chance of an arc flash is kept inside. Contacts are contained within the enclosure.
Spring assisted terminals: Spring ring provides pressure on the screw terminal and conductor to create a more secure connection
Meltric DSN Series User Manual
Meltric DSN100 100A, 250V, 2 Pole + Ground Metal Female Receptacle
