The Meltric 63-88165 DSN100 male inlet is rated for 120V and 100A. It features 1 Pole plus ground and neutral. It has a wiring capacity of 10-2 AWG with a temperature range of -40 F to 140 F. The body is blue thermoplastic polyester, with silver-nickel contacts. The housing is fiberglass reinforced for impact resistance and also withstands chemical and UV exposure. Type 4X for water tightness, rated IP 66 / IP 67. UL listed.
Note: Image is for reference, actual part may differ. Ground shipping only
Specifications
- Rated Voltage- 120V AC
- Rated Current- 100 Amps

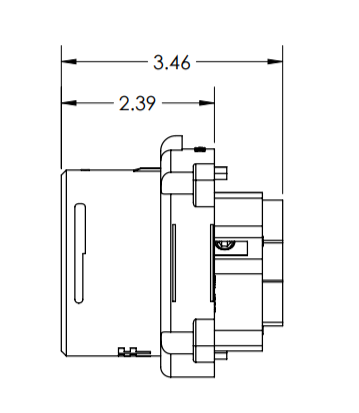

- Overall Dimensions- 3.77" Height x 3.46" Depth
- Polarity- 1 Pole + Neutral + Ground
- Switch Rating (AC only)- Branch Circuit & Motor Circuit Disconnect Switching
- Horsepower Rating- 5 hp
- Short Circuit Rating- 100kA Close & Withstand
- Impact Rating- IK09
- Temperature Range- -40 F to 140 F (-40 C to 60 C)
- Wiring Capacity- 10-2 AWG
- Terminal Type- Screw
- Environmental Rating- Type 4X, IP 66 / IP 67
- Listings- UL, CSA
The 63-88165, as part of the Meltric DSN Decontactor series, provides optimum safety by greatly reducing the chances of arc flash. The durable construction is made to last without immediately needing replacement parts, which in turn lowers costs. The compact design of this power connector does not take up a lot of unnecessary space. It creates a watertight assembly when attached to the compatible female receptacle, making it ideal for wet or washdown applications in industrial environments. These connectors also have plug and play capability for a quick and easy disconnect, making for more streamlined operation by generating less downtime.
Silver nickel contacts: 85% silver, 15% nickel combination. Creates a durable and highly conductive contact point. Tarnishing will not greatly hinder its contact resistance. Withstands repeated connecting and disconnecting
Lockout tagout capability: A 5/16" hole in the plug housing makes it easy to use a padlock on the plug if needed, in order to keep it from being inserted into a receptacle.
Meltric DSN Series User Manual
Meltric DSN100 100A, 120V, 1 Pole + Neutral + Ground Male Inlet
