Macromatic Single Channel 24V, 4.7K to 100K Pump Seal Failure Relay


Macromatic SFP024A100 Pump Seal Failure Relay
Macromatic SFP024A100 Single Channel 24V, 4.7K to 100K Pump Seal Failure Relay

Alternative Views:


Price: $103.66
Note: Ships in 5-10 business days
MFG P/N: SFP024A100
MFG: Macromatic
Weight (lbs): 0.3



Availability:
In Stock
Product Code: SFP024A100
Qty:

Description

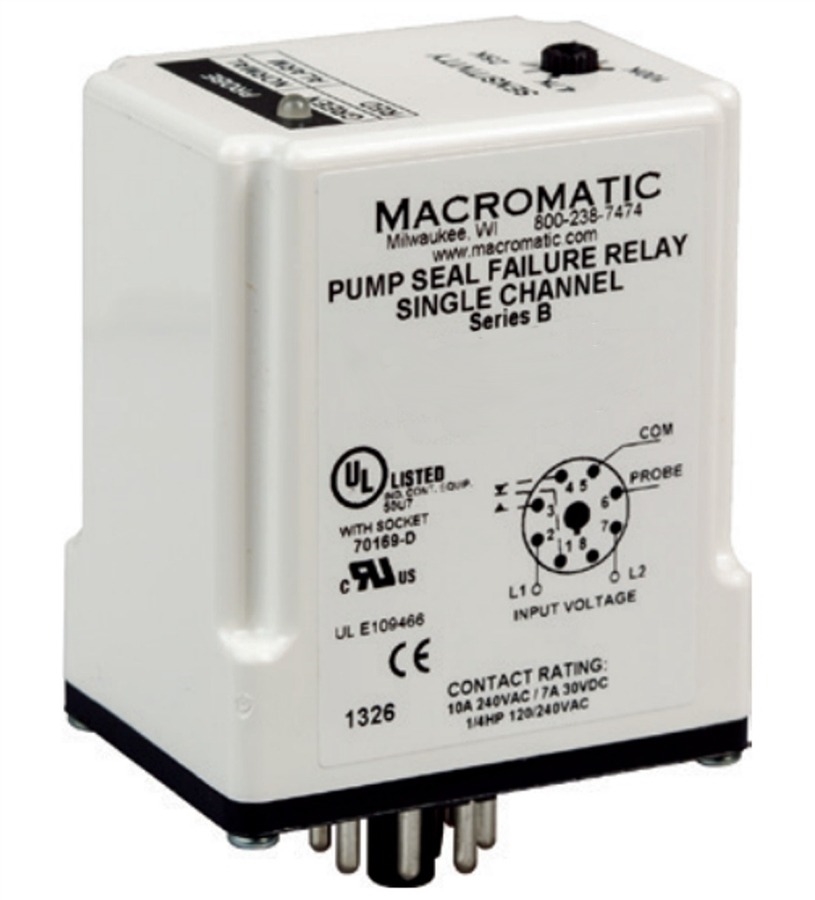

The Macromatic SFP024A100 is a pump seal failure relay. This 8 Pin plug-in relay has an input voltage of 24V. This single channel relay is made to monitor for leaks in submersible pump seals and has an output of 10A SPDT. The sensitivity is adjustable and can be preset to meet the resistance level needed. The single channel feature means that the relay detects leaks for a single pump. The SFP024A100 features an LED that is red when the unit energizes and senses a leak. It stays green if there is no leak once the input voltage is introduced. It uses an 8 pin 70169-D octal socket. Note: SFP120A100 pictured

Specifications

  • Relay Function- Seal Leak, Single Channel
  • Input Voltage- 24V AC
  • Output- 10A SPDT
  • Sensitivity Range- 4.7K to 100KOhm
  • Voltage Tolerance- +10/-15% of nominal
  • Load- 3VA
  • Probe Voltage- 5V DC Pulsed
  • Operating Temperature- -28 C to 65 C (-18 F to 149 F)
  • Storage Temperature- -40 C to 85 C (-40 F to 185 F)
  • Output Contacts- 10A @ 240V AC / 7A @ 28V DC, 1/4 HP @ 120V AC (N.O.)
  • Life- Mechanical: 10,000,000 Operations, Full Load: 100,000 Operations
  • Response Time- Pick up: 1 sec, Drop out: 1 sec

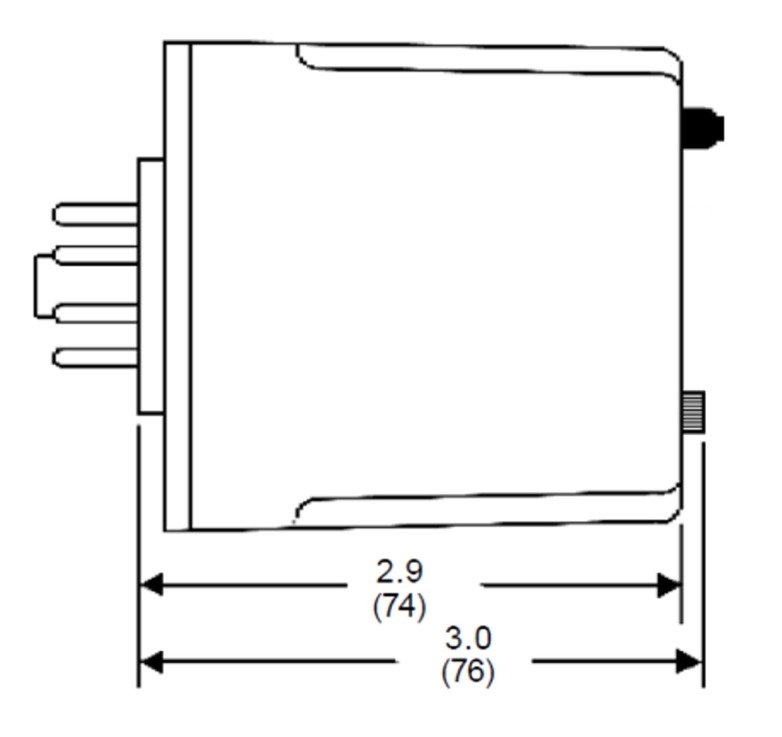

  • Dimensions- 2.4" Height x 1.7" Width x 3" Depth
  • Approvals- UL and CUL Recognized, CE, UL & CUL Listed (with Socket)

The resistance is measured by a probe that is inserted in the pump seal cavity. In the event of a leak, resistance between the probe and the connection is lowered by contaminating fluid that goes into the seal cavity. The relay energizes when the resistance goes below the preset sensitivity point.

Macromatic SFP Series Relay Installation Instructions

SFP024A100 Seal Leak Relay
