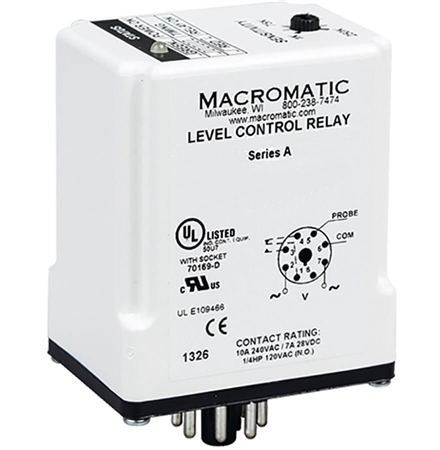

The Macromatic LCP1D100 is a dual probe pump up liquid level control relay. This 8 Pin plug-in relay has an input voltage of 240V AC. It monitors the level of conductive liquid, (such as tap water, chemical solution, seawater, etc.) and compares the resistance between the probes. Used to monitor liquid levels in the tank for pumps, solenoids, or valves. Pilot duty rating. Can cross to products from SSAC & NCC Note: Image is for reference, actual part may differ.

Specifications

• Relay Function- Dual Probe Pump Down Liquid Level Control Relay
• Input Voltage- 240V AC
• Output- 10A SPDT
• Sensitivity Range- 4.7K to 100K Ohms
• Voltage Tolerance- AC Operation: +10 / -15% of nominal at 50/60 Hz
• Load- 2 VA
• Probe Voltage- 5V DC Pulsed
• Operating Temperature- -28 C to 65 C (-18 F to 149 F)
• Storage Temperature- -40 C to 85 C (-40 F to 185 F)
• Output Contacts- 10A @ 240V AC / 7A @ 28V DC, 1/4HP @ 120V AC (N.O.)
• Life- Mechanical: 10,000,000 operations, Full Load: 100,000 operations
• Response Time- Pick Up: 1 Second, Drop Out: 1 Second
• Dimensions- 2.4" Height x 1.7" Width x 3.2" Depth
• Approvals- UL and CUL recognized, UL & CUL listed (with Socket)

When the level of conductive liquid hits the high probe, the relay is energized and the LED is red. It stays energized until the level of liquid goes below the low probe. The LED then turns green until the liquid hits the high probe again.

Macromatic LCP Series Installation Instructions
