The LiteCycle SG-AL-4P is an aluminum terminal enclosure which supports 4 circuits. It is made from Cast Aluminum with a wall thickness of 3.5mm. This enclosure features dimensions for mounting hole locations that are molded inside. It can be mounted to a base plate through the pre-tapped screw bosses in the base. Grounding options also include the tapped screw boss in the cover. There are two screws on every terminal.
Specifications

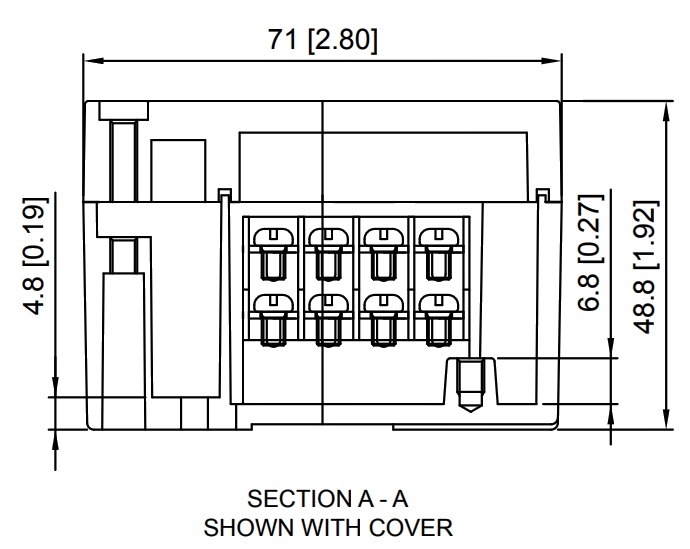

- Dimensions- 61 mm Width X 71 mm Length X 48 mm Height (2.4" x 2.8" x 1.9")
- Housing Color- Gray
- Base Material- Cast Aluminum
- Cover Material- Cast Aluminum
- Connection Capacity- 14-20 AWG
- Grounding- Screw Boss for M4
- Terminations- 8
- Circuits- 4
- Rated Voltage- 120V AC
- Rated Frequency- 60Hz
- Input Current- 15 Amps
- Ingress Protection- IP 67
- Approvals- CE, UL 508A
The SG-AL-4P has an integrated terminal block and features a waterproof, space saving design. It is ideal for a number of different applications and industries including welding, robotics, machinery, automobiles, gas supplying facilities and petrochemical plant facilities. The SGAL4P is easy to install due to the grounding screws and molded dimensions, while giving wiring junctions greater protection. It gives protection from dust and can be submerged up to 1 meter for 30 minutes. Rated IP 67.
