The Light Efficient Design LED-8091M40D is a 320W shoe box / wall pack retrofit, cool white LED light. It has a rated voltage of 120-277VAC with a luminosity of 43380Lm and color temperature of 4000K.

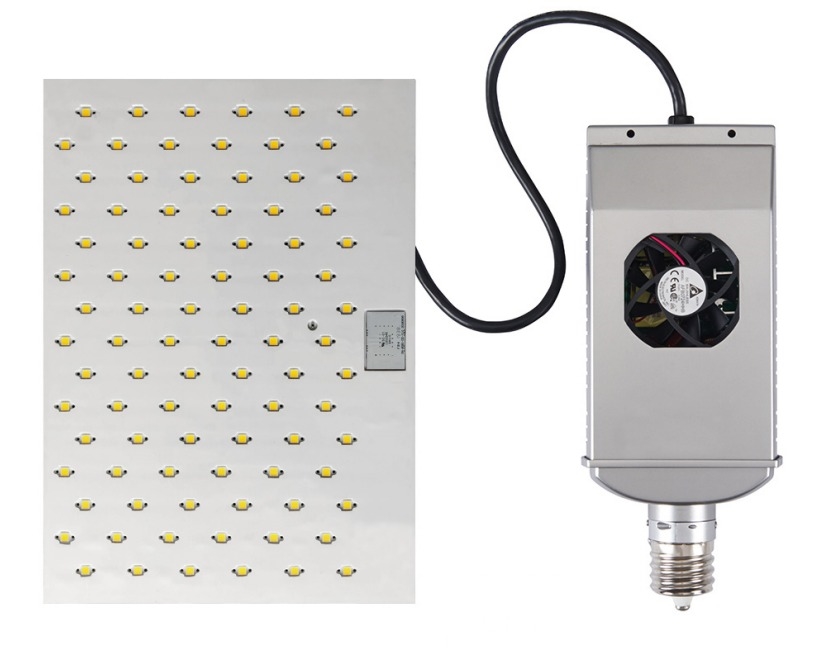

• Separate LED panel
• Panel designed to adhere to a flat glass lens
• Bypass ballast during installation
• Cooling fan & thermal sensor maintain the lifespan
• 10kA surge protection
• Base up, base down, or horizontal mounting
• Made for enclosed fixtures
• Includes support feet to keep the bulb from sagging within the fixture
• Can be dimmed to 50% by flipping the switch at the top of the lamp to LO

Specifications

• LED Bulb Type- Shoe Box / Wall Pack
• Base Type- Mogul EX39 (39 mm diameter)

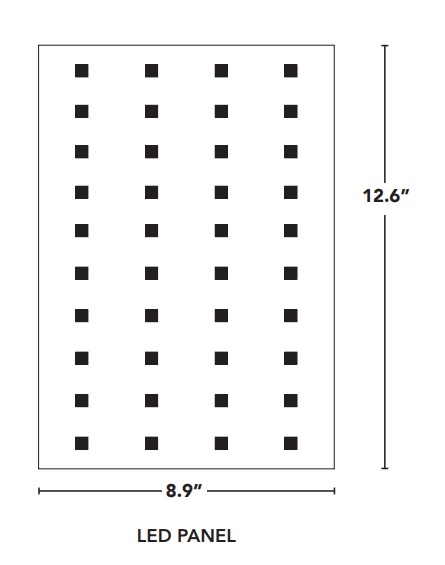

• LED Panel Dimensions- 12.6" Length x 8.9" Width

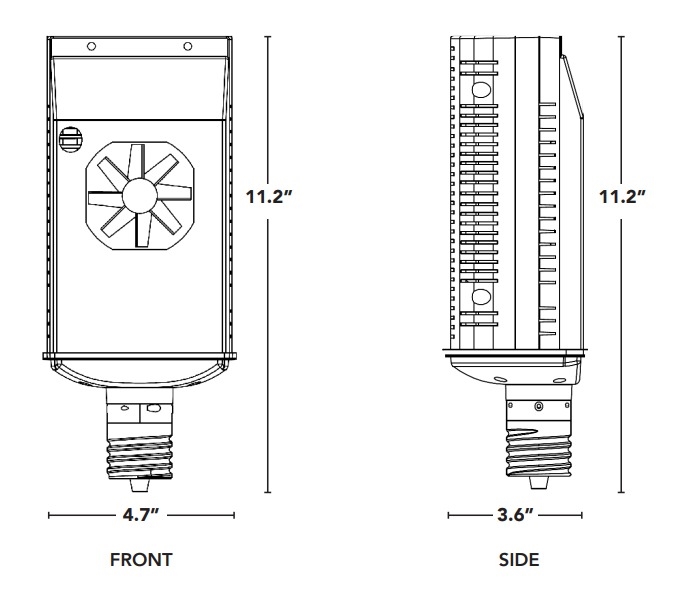

• LED Driver Dimensions- 11.2" Length x 4.7" Width x 3.6" Depth
• Color- Cool White
• Lumens- 43380
• Input Voltage- 120-277V AC
• Output Power- 320 Watts
• CRI- > 70
• Life Expectancy- > 50,000 hrs
• Replaces- HID lamps up to 1000 Watts
• Beam Angle- Type V
• Dimmable- Yes
• Color Temperature- 4000K
• Operating Temperature- -40 F to 122 F (-40 C to 50 C)
• Approvals- UL & CUL Listed, RoHS Compliant, CE, FCC
• Warranty- 5 Year Manufacturer's Warranty

The benefits of using the LED-8091M40D include lower energy and maintenance costs, due to its lower wattage and long life. It can be used in a variety of applications that use HID fixtures, including along roadways or in parking lots, shoe box flood lights, wall packs or horizontal canopy lighting.

Light Efficient Design LED-8091 Installation Instructions

320W 4000K Dimmable Wall Pack LED Retrofit Light LED-8091M40D
