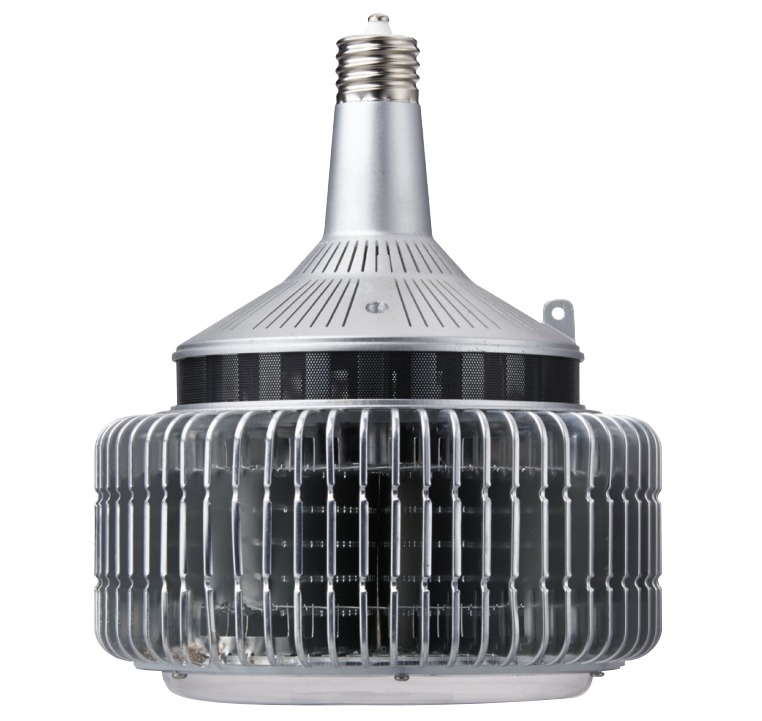

The Light Efficient Design LED-8242M40D is a 270W high bay retrofit cool white LED light. It has a rated voltage of 120-277VAC with a luminosity of 34415Lm and color temperature of 4000K.
- 0-10V dimmable to 20%
- Dynamic temperature control with advanced active cooling
- Can be used in damp locations
- Housing is protected from insects & dust
- 6kA surge protection
- Dual stage MOV
- Bypass ballast during installation
- Made for use in enclosed fixtures
Specifications
- Bulb Type- High Bay Retrofit
- Base Type- Mogul EX39 (39mm diameter)

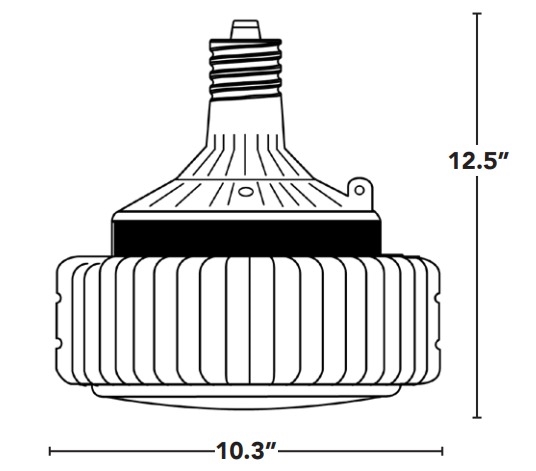

- Dimensions- 10.3" Width x 12.5" Length
- Color- Cool White
- Lumens- 34415
- Input Voltage- 120-277VAC
- Output Power- 270 Watts
- CRI- >80
- Life Expectancy- Up to 50,000 hrs
- Replaces- HID lamps up to 1000W
- Dimmable- Yes
- Color Temperature- 4000K
- Operating Temperature- -40 F to 122 F (-40 C to 50 C)
- Approvals- UL & CUL Listed, RoHS Compliant, CE, FCC
- Warranty- 5 Year Manufacturer's Warranty
Light Efficient Design LED-8242 Installation Instructions
High Bay 270W 4000K Dimmable Retrofit Light LED-8242M40D
|
|
|
