Kacon Rotary Switch Disconnector, 63A, Panel Type

Kacon Rotary Switch Disconnector, 63A, Panel Type
Kacon MLD-063PE Rotary Switch Disconnector, 63A, Panel Type

Alternative Views:
Price: $61.60
Note: Call 800-966-2345 for Lead Time
MFG P/N: MLD-063PE
MFG: Kacon
Weight (lbs): 1



Availability: In Stock
Product Code: MLD-063PE
Qty:

Description

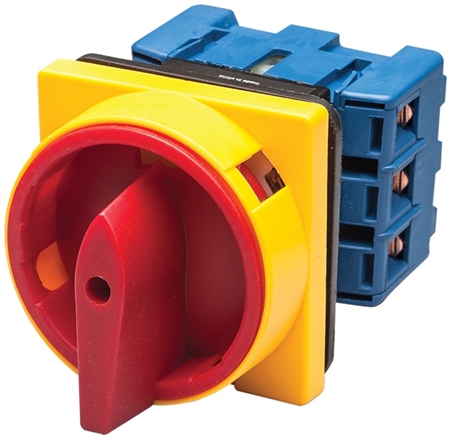

The Kacon MLD-063PE panel mount rotary switch disconnector has a round head. Rated for 63 A and 240-440V. Rated IP 65.

Specifications

  • Switch Type- Emergency Type Rotary Switch Disconnector
  • Switch Shape- Round

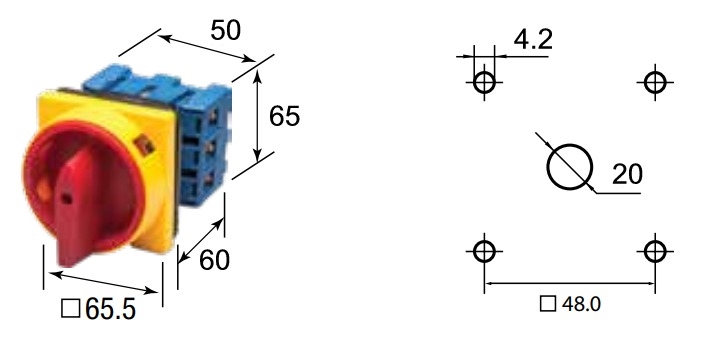

  • Overall Dimensions- 65.5 mm Width x 65.5 mm Height x 50 mm Length (2.58" x 2.58" x 1.97")
  • Rated Current- 63 Amps Max, 43 Amps (AC-23A), 36 Amps (AC-3)
  • Rated Insulation Voltage- 690V
  • Rated Voltage- 240-440V
  • Contact Capacity- 9-22 Kilowatts (AC-23A), 8-18.5 (AC-3)
  • Motor Load- 10-20 Horsepower, 240-440V
  • LCW/S- 516 Amps
  • Wire Size- 2-38 mm2
  • Tightening Torque- 1.2 N·m (12.24 kgf·cm)
  • Working Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ingress Protection- IP 65 (total protection from dust and low pressure water jets from any direction)
  • Approvals- CE
