Kacon Rotary Switch Disconnector, 32A, Extended Shaft

Kacon Rotary Switch Disconnector, 32A, Extended Shaft
Kacon MLD-032ESE Rotary Switch Disconnector, 32A, Extended Shaft

Alternative Views:
Price: $60.65
MFG P/N: MLD-032ESE
MFG: Kacon
Weight (lbs): 2

Quantity in Stock :1


Availability: In Stock
Product Code: MLD-032ESE
Qty:

Description

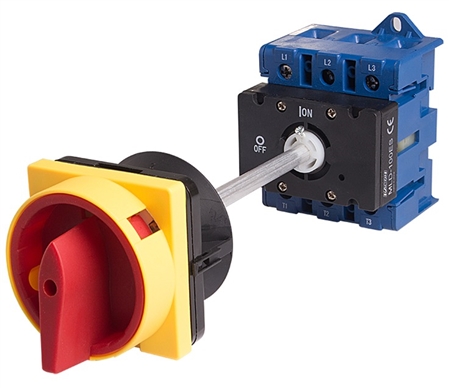

The Kacon MLD-032ESE rotary switch disconnector has a round head and extended shaft. Rated for 32 A and 240-440V. Rated IP 65.

Specifications

  • Switch Type- Emergency Type Rotary Switch Disconnector
  • Switch Shape- Round
  • Overall Dimensions- 65.5 mm Width x 65.5 mm Height x 201 mm Length (2.58" x 2.58" x 7.91")
  • Rated Current- 32 Amps Max, 22 Amps (AC-23A), 15 Amps (AC-3)
  • Rated Insulation Voltage- 690V
  • Rated Voltage- 240-440V
  • Contact Capacity- 5.5-11 Kilowatts (AC-23A), 4-7.5 (AC-3)
  • Motor Load- 5-10 Horsepower, 240-440V
  • LCW/S- 264 Amps
  • Wire Size- 2-14 mm2
  • Tightening Torque- 0.8(8.16kgf·cm)
  • Working Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ingress Protection- IP 65 (total protection from dust and low pressure water jets from any direction)
  • Approvals- CE

MLD-032ESE 32 Amp Rotary Disconnect Switch
