The Kacon KSC2060ZD three phase solid state relay has an input voltage of 24V DC & a load voltage of 90-240V AC. Load current of 60A. Features an LED indicating the status of the control input and an over temperature alarm output. LED is green under normal conditions or red to indicate overheating. Alarm feature is made to be connected to an external alarm device. Clip cover is rated for IP 20 (Protected from objects 12.5 mm (0.5") in diameter or greater). Note: Image is for reference, actual part may differ.
Specifications

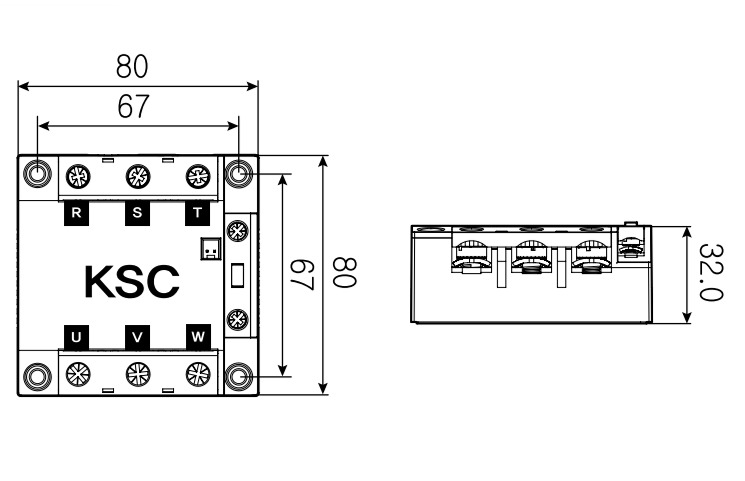

- Overall Dimensions- 80 mm Height x 80 mm Width x 32 mm Depth (3.15" x 3.15" x 1.26")
- Input Voltage- 24V DC
- Operation Mode- Zero Cross
- Load Current- 60 Amps
- Load Voltage- 90-240V AC (Rated load voltage 220V AC)
- Rated Control Voltage- 24V DC
- Control Voltage Range- 4-32V DC
- Pick-Up Voltage- Less than 4V DC
- Drop-Out Voltage- More than 1.4V DC
- Input Current- 0.03 Amps (+/- 0.003 Amps)
- Load Current Range- 0.5 Amps (at 25 C / 77 F)
- Peak Voltage- 600V
- Single Cycle Surge Current Resistance- 580, 60Hz 1 Cycle
- Alarm Output- NPN Open Collector, Opens when the relay temperature is at 95 C / 203 F (+/- 5)
- Alarm Max. Switching Current Rating- 50mA DC
- Alarm Voltage Drop- 2.8V DC (Typical), 4V DC (Maximum)
- Release Time- Cycle of 1/2 load + less than 1 millisecond
- Output Voltage on Drop- Less than 1.6V (RMS)
- Leakage Current- Less than 0.01 Amps (200V AC)
- Insulation Resistance- More than 100 MOhms (500V DC)
- Withstand Voltage- 5000V AC 50/60Hz, 1 min
- Vibration Resistance- 10-55-10Hz Peak Amplitude 0.35mm (Dual Amplitude 0.7mm)
- Shock Resistance- 294m/s2
- Storage Temperature- -30 C to 100 C (-22 F to 212 F)
- Ambient Temperature- -30 C to 80 C (-22 F to 176 F)
- Ambient Humidity- 45-85% Relative Humidity
- Approvals- CE, C UR US
