Kacon Single Phase Solid State Relay, 4-32V DC Input, 90-480V AC Load, 10A

Kacon Single Phase Solid State Relay, 4-32V DC Input, 90-480V AC Load, 10A
Kacon KMSR-DS0104 Single Phase Solid State Relay, 4-32V DC Input, 90-480V AC Load, 10A

Alternative Views:
Price: $21.09
MFG P/N: KMSR-DS0104
MFG: Kacon
Weight (lbs): 0.2

Quantity in Stock :5


Availability: In Stock
Product Code: KMSR-DS0104
Qty:

Description


The Kacon KMSR-DS0104 single phase solid state relay has an input voltage of 4-32V DC & a load voltage of 90-480V AC. Load current of 10A. Features a hockey puck style housing and an LED indicates the status of the control input. The clip cover has a protection rating of IP 20 (Protected from objects 12.5 mm (0.5") in diameter or greater). Note: Image is for reference, actual part may differ.

Specifications

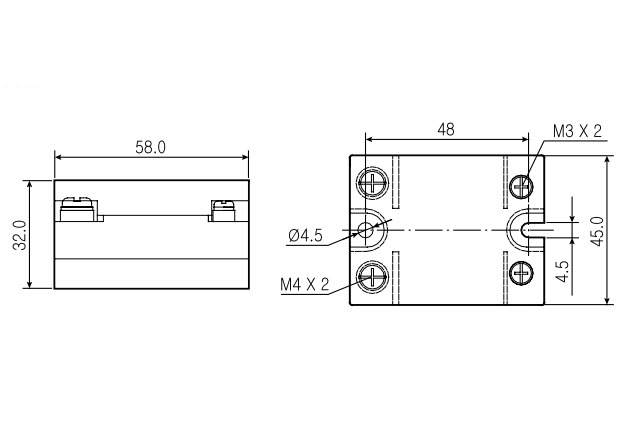

  • Overall Dimensions- 58 mm Height x 45 mm Width x 32 mm Depth (2.28" x 1.77" x 1.26")
  • Input Voltage- 4-32V DC
  • Output Voltage- Single Phase
  • Load Current- 10 Amps
  • Load Voltage- 90-480V AC
  • Pick-up Voltage- 3V DC Min
  • Drop-out Voltage- 1.5V DC Max
  • Input Current- 0.003-0.035 Amps Max
  • Peak Voltage- 800V
  • Frequency- 47-63 Hz
  • Single Cycle Surge Current Resistance- 170 Amps
  • Output Leakage Current- 0.02 Amps
  • Output on Voltage Drop- 1.3V Max
  • Minimum Switching Current- 1 Amp
  • Pick-up/Drop-out Time- 1/2 Cycle + 1 millisecond Max
  • Insulation Resistance- 100 MOhms / 500V DC (between Terminal & Case)
  • Dielectric Strength- 2500V AC (50/60Hz 1 minute)
  • Vibration Resistance- 10-55Hz, Amplitude: 1.5mm,x,y,z each axis 2 hours
  • Shock Resistance- 1000m/s2,s,y,z each axis 3 times
  • Storage Temperature- -30 C to 90 C (-22 F to 194 F)
  • Ambient Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Approvals- CE, UL & CUL Recognized
