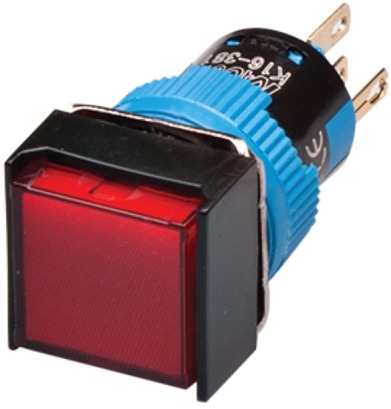

The Kacon K16-180-R-6V pilot lamp has a square, red lens. Made for 16 mm (5/8") mounting holes. Lens illuminated by 6VDC LED. Rated IP 65. Pilot lamps, also called pilot lights, are used to indicate when an electrical circuit is closed.
Specifications
- Lens Shape & Color- Square, Red

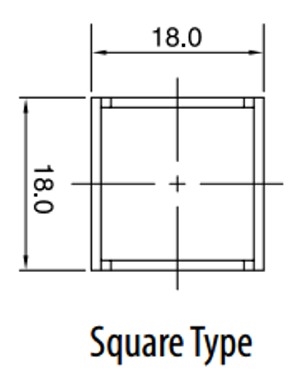

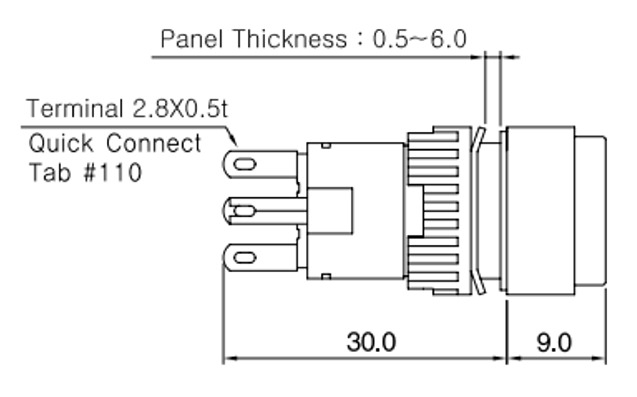

- Dimensions- 39mm L x 18mm W x 18mm H
- LED Voltage- 6V DC
- LED Nominal Current- 15 mA
- LED Lifespan- 50,000 hrs.
- Contact Resistance- Max. 50 mOhm
- Insulation Resistance- 100 MOhm at 500VDC
- Dielectric Strength- 2000 VAC for 1 min
- Vibration Resistance- 25-55Hz dual amplitude: 0.75mm
- Shock Resistance- Endurance: 500m/s2, Operating error: 200m/s2
- Operating Temperature: -25 C to +55 C (-13 F to 131 F)
- Storage Temperature: -30 C to +80 C (-22 F to 176 F)
- Ambient Humidity- 45-85% RH
- Degree of Protection- IP 65
- Terminal Soldering 20W 5sec / 260 C 3sec
- Approvals- UL & CUL Recognized, CE
Kacon K16-180-R-6V Square Red 6V DC LED Pilot Light
|
|
|
 |
|
 |
|
