Jorc 230V AC EAD Timer Controlled Drain, 3/8" NPT, 0-230 PSI

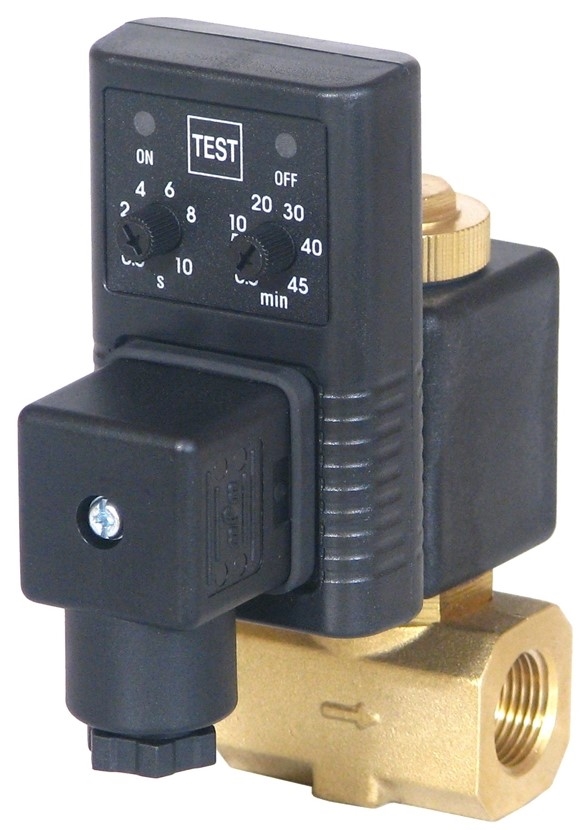

Jorc 2302 230V AC EAD Timer Controlled Drain
Jorc 2302 230V AC EAD Timer Controlled Drain, 3/8" NPT, 0-230 PSI

Alternative Views:


Price: $91.80
MFG P/N: 2302
MFG: Jorc
Weight (lbs): 1.5

Quantity in Stock :2


Availability:
In Stock
Product Code: 2302
Qty:

Description


The Jorc 2302 230V AC EAD timer controlled drain features a brass valve housing with LED indicators, adjustable timers, a direct acting solenoid valve, and a 4mm opening. This economy condensate drain is useful for refrigerated air dryers, air compressors, air filters, and particularly applications with high flow rates & steady loads. Comes with 7 ft power cord.

  • 230V AC
  • 3/8" NPT inlet & outlet
  • Rated for 0-230 PSI (0-16 bar)
  • Serviceable valve
  • Does not air lock while in use
  • Works with any type of compressed air system up to 230 PSI
  • TEST feature
  • Precise timing
  • LEDs indicate on/off status

Specifications

  • Dimensions- 4.292" Length x 1.691" Width x 3.518" Depth
  • Max Compressor Capacity- Any Size
  • Ambient Temperature- 34 F to 131 F (1 C to 55 C)
  • Timer Cycle Range (On/Off)- 0.5 - 10 sec / 0.5 - 45 min
  • Timer PCB- SMD Technology
  • Timer Cycle Indication- LEDs
  • Valve Type- 2/2 Way, Direct Acting
  • Valve Opening- 4mm (0.16")
  • Valve Seals- FPM
  • Inlet Connection Height- 10mm (0.4")
  • Valve Housing Material- Brass
  • Power Connection- DIN 43650 Form A
  • Environmental Protection- NEMA 4 (IP 65)

Jorc EAD Timer Drain Installation Manual

Jorc 230V AC 3/8" NPT DIN 43650 Form A EAD Timer Condensate Drain
