ILME Kit, 6 Pole Inserts, Screw Termination, Single Lever Base, Side Entry M32 Hood


MNLS-06IOA32
ILME MNLS-06IOA32 Kit, 6 Pole Inserts, Screw Termination, Single Lever Base, Side Entry M32 Hood

Alternative Views:


Price: $85.76
Note: Please call or email [email protected] for alternatives
MFG P/N: MNLS-06IOA32
MFG: ILME
Weight (lbs): 0.8

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MNLS-06IOA32
Qty:


Description


The ILME MNLS-06IOA32 kit is size 44.27 with 6 pole male & female screw terminal inserts, a metal side entry hood and a metal single lever base. The hood thread is size M32. Insert dimensions 44 x 27 mm. Rated IP 66. The MNLS-06IOA32 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

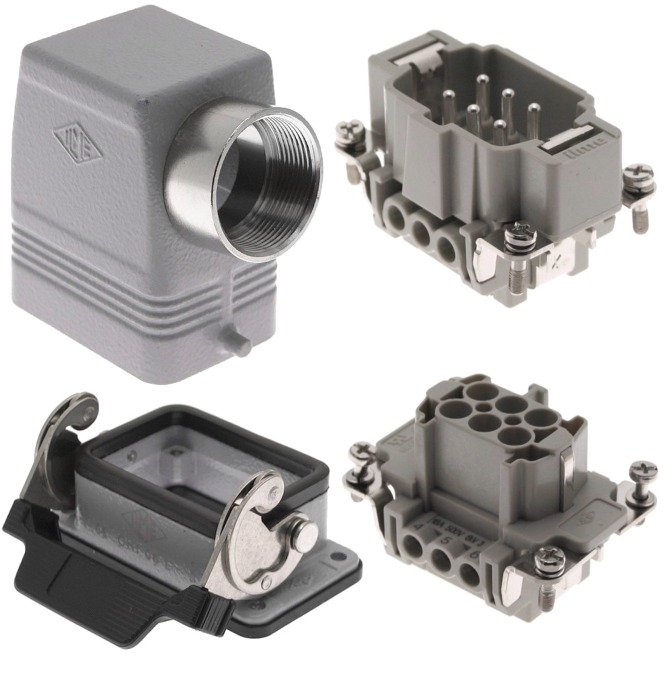

Included Components

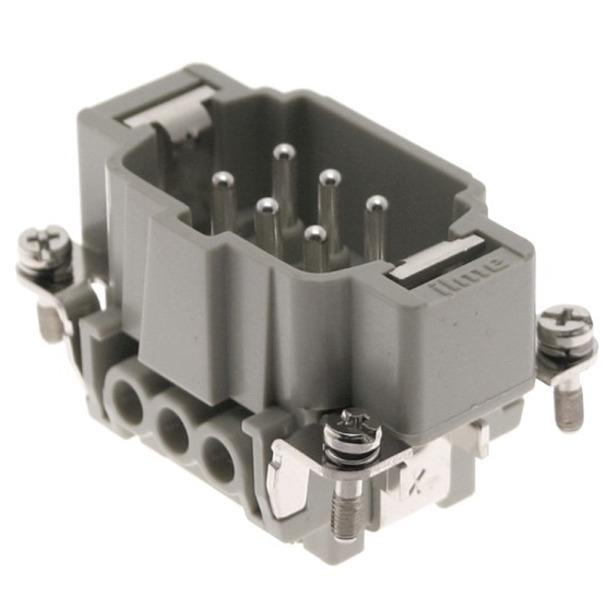

Male Insert: CNEM-06T

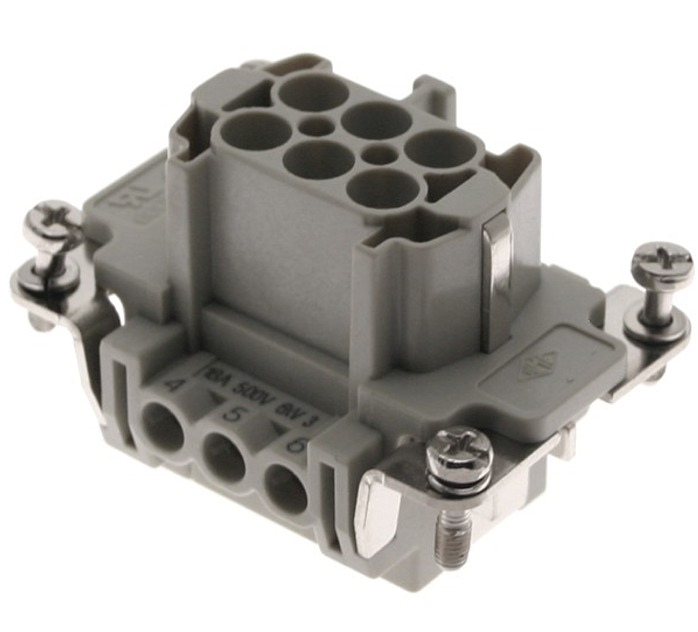

Female Insert: CNEF-06T
Base: CHI-06L

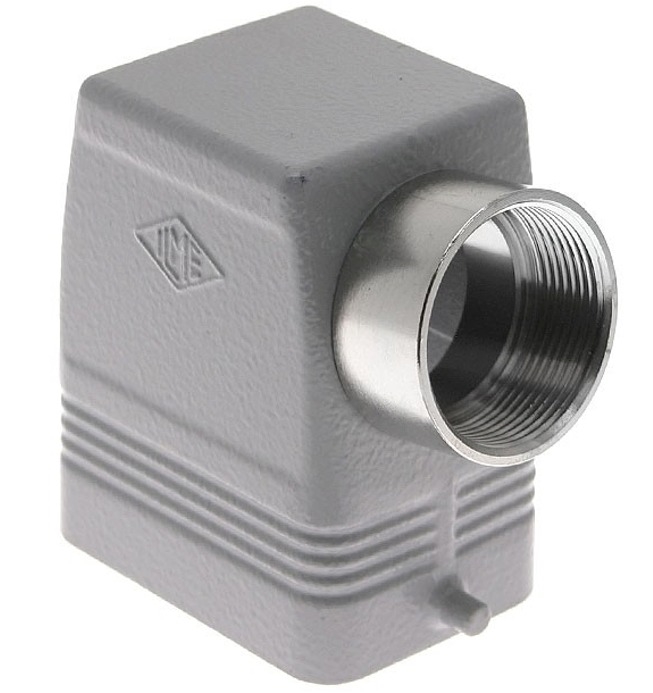

Hood: MAO-06L32

Specifications

  • Pin Count- 6
  • ILME Series- KIT
  • Housing Type- Standard
  • Insert Dimension- 44.27
  • Enclosure Dimension- 44.27
  • Termination- Screw
  • Enclosure Type- Single Lever
  • Mounting Style- Panel Mount
  • Hood Entry- Side
  • Hood Thread- M32
  • Pegs- 2 Pegs
  • Gasket- Yes
  • Number of Entries- 1
  • Temperature Range- -40 C to +125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Dimensions- 44 x 27 mm (1.73" x 1.06")
  • Approvals- UL, CUL

ILME 44.27 6 Pin Insert Side Entry M32 Hood Kit MNLS-06IOA32
