ILME V-Type Metallic Hood, Size 77.27, PG 21, Double Lever


ILME CVAV-16G21

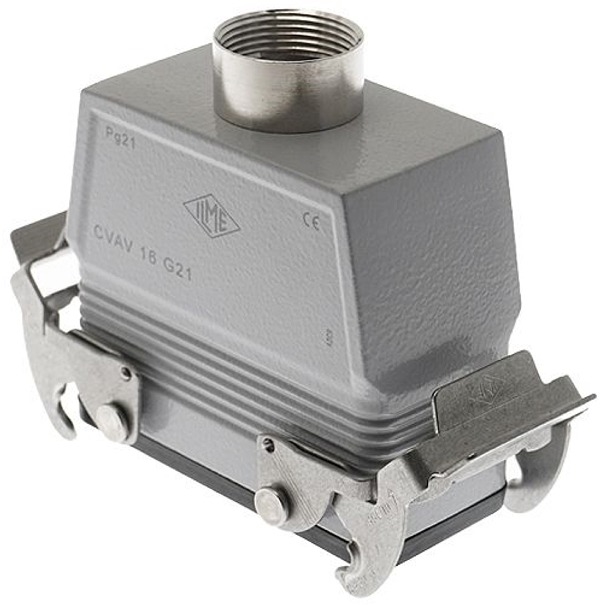

ILME CVAV-16G21 V-Type Metallic Hood, Size 77.27, PG 21, Double Lever

Alternative Views:


Price: $45.69
MFG P/N: CVAV-16G21
MFG: ILME
Weight (lbs): 0.8



Availability:
In Stock
Product Code: CVAV-16G21
Qty:


Description


The ILME CVAV-16G21 V-Type standard metallic hood is size 77.27 and features two levers with a PG 21 cable entry. The body is die cast aluminum with cable entry through the top. Insert center distance: 77.5 x 27mm. Rated IP 66. The CVAV-16G21 has constant clamping force due to the stainless steel locking system, and has a life expectancy over 500 cycles.

Specifications

  • Body- Die Cast Aluminum
  • ILME Series- CV
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- Hoods with 2 Levers
  • Mounting Style- Bulkhead Mount
  • Hood Entry- Top
  • Hood Thread- PG 21
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
  • Approvals- C UR US

Compatible Inserts

Series Part Number
CD CDM-40, CDF-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2
