The ILME CAVT-16.6L C-Type standard metallic hood is size 77.27 and features 2 pegs with a 1" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 77.5 x 27mm. Rated IP 66. The CAVT-16.6L is durable and has a life expectancy over 500 cycles.
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- ILME Series- CA
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Housing Type- Metallic, Standard
- Enclosure Type- Hoods for Single Lever
- Mounting Style- Cable
- Hood Entry- Top
- Hood Thread- 1" NPT
- Pegs- 2 Pegs
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
- Approvals- UL, CUL
Compatible Inserts
|
Series
|
Part Number
|
|
CD
|
CDM-40, CDF-40
|
|
CDD
|
CDDF-72, CDDM-72
|
|
CQE
|
CQEF-32, CQEM-32
|
|
CSH, CDSH
|
CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
|
|
CCE
|
CCEF-16, CCEM-16
|
|
CNE
|
CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
|
|
CSS
|
CSSF-16, CSSM-16
|
|
CP
|
CPF-06, CPM-06
|
|
CX
|
CXF-6/36,
CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2
|

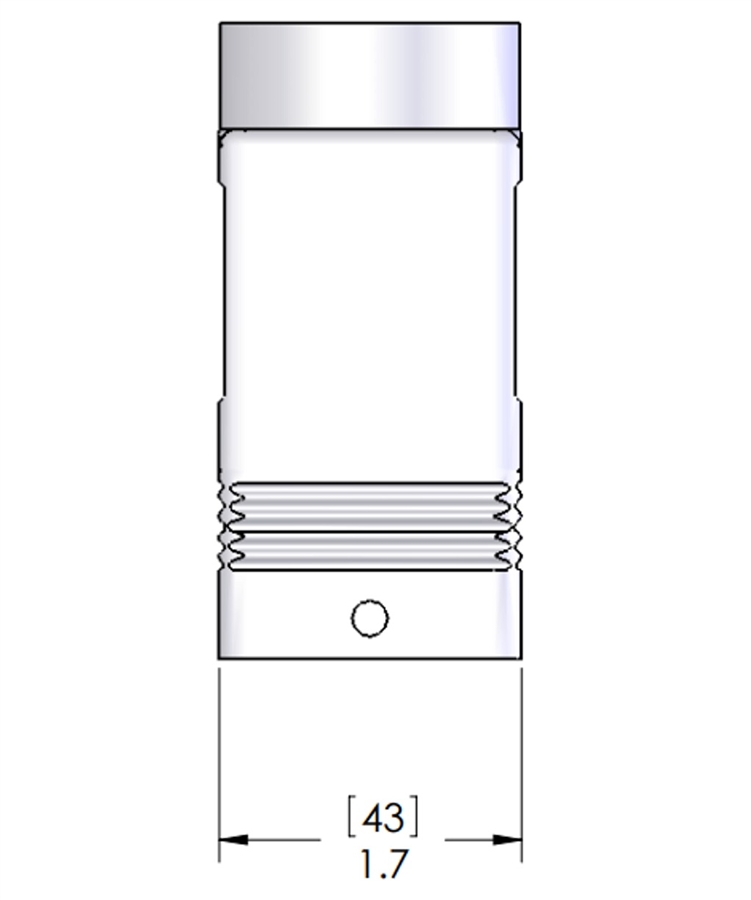

ILME CAVT-16.6L Top Entry 1" NPT Hood with 2 Pegs
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
