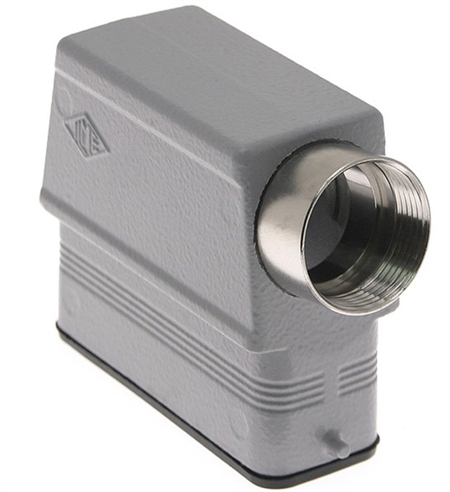

The ILME CZAO-25L21 C-Type standard metallic hood is size 66.16 and features 2 pegs with a PG 21 cable entry. The body is epoxy coated die cast aluminum with cable entry through the side. Rated IP 66 when attached to mating base. The CZAO-25L21 is durable and has a life expectancy over 500 cycles.
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- ILME Series- CZ
- Insert Dimension- 66.16
- Enclosure Dimension- 66.16
- Housing Type- Metallic, Standard
- Enclosure Type- Hoods for Single Lever
- Mounting Style- Cable
- Hood Entry- Side
- Hood Thread- PG 21
- Pegs- 2 Pegs
- Gasket- Yes
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Approvals- C UR US, CCC, GL
Compatible Inserts
66.16 Size ILME Hood with Gasket CZAO-25L21
|
|
