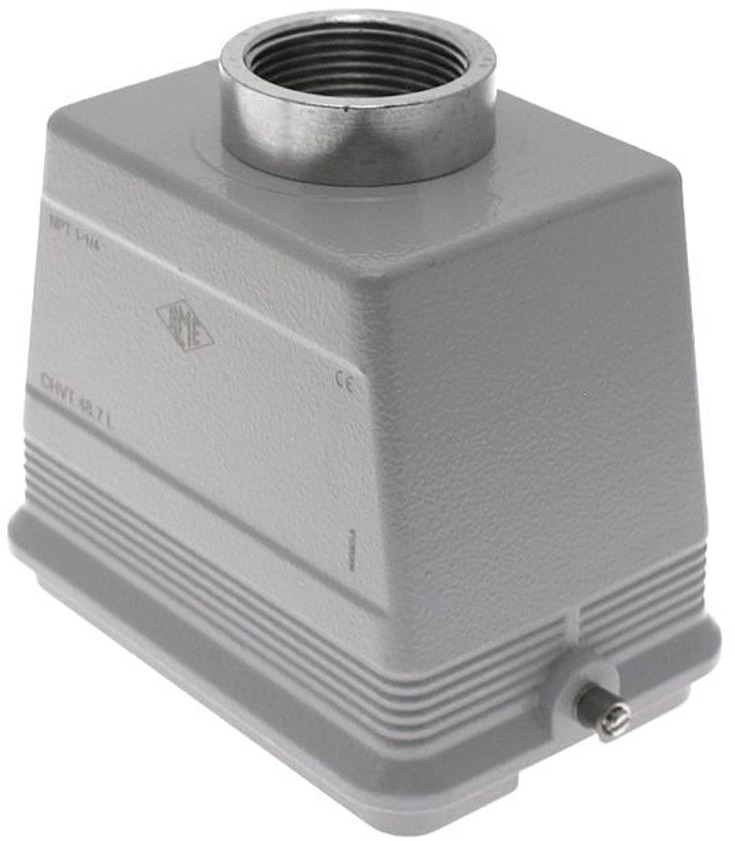

The ILME CHVT-48.7L C-Type standard metallic hood is size 104.62 and features 2 pegs with a 1-1/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 2 x (104 x 27mm). Rated IP 66. The CHVT-48.7L is double size to accommodate up to two compatible inserts (the standard insert plus corresponding N insert completes the polarity).
Specifications
- Body- Epoxy Coated Die Cast Aluminum
- Fitting- Nickel Plated Brass
- ILME Series- CH
- Insert Dimension- 104.62
- Enclosure Dimension- 104.62
- Housing Type- Metallic, Standard
- Enclosure Type- Hoods for Single Lever
- Mounting Style- Cable
- Hood Entry- Top
- Hood Thread- 1-1/4" NPT
- Pegs- 2 Pegs
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Center Distance- 2 x (104 x 27) mm 2 x (4.09" x 1.06")
- Approvals- UL, CUL
Compatible Inserts
|
Series
|
Part Number
|
|
CD
|
CDF-64, CDM-64
|
|
CDD
|
CDDF-108, CDDM-108
CDDF-108N, CDDM-108N
|
|
CQE
|
CQEF-46, CQEM-46
|
|
CSH
|
CSHF-24, CSHM-24
|
|
CCE
|
CCEF-24, CCEM-24, CCEM-24N, CCEF-24N
|
|
CNE, CSE
|
CNEF-24T, CNEF-24TX, CNEM-24T, CNEM-24TX
CSEF-24, CSEM-24
|
|
CSS
|
CSSF-24, CSSM-24
|
|
CME
|
CMEM-16
|
CHVT-48.7L Double Size Top Entry 1-1/4" NPT Hood
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
