ILME C-Type Metallic Hood, Size 104.27, 3/4" NPT, 2 Pegs

ILME CHVT-24.5L C-Type Metallic Hood, Size 104.27, 3/4" NPT, 2 Pegs

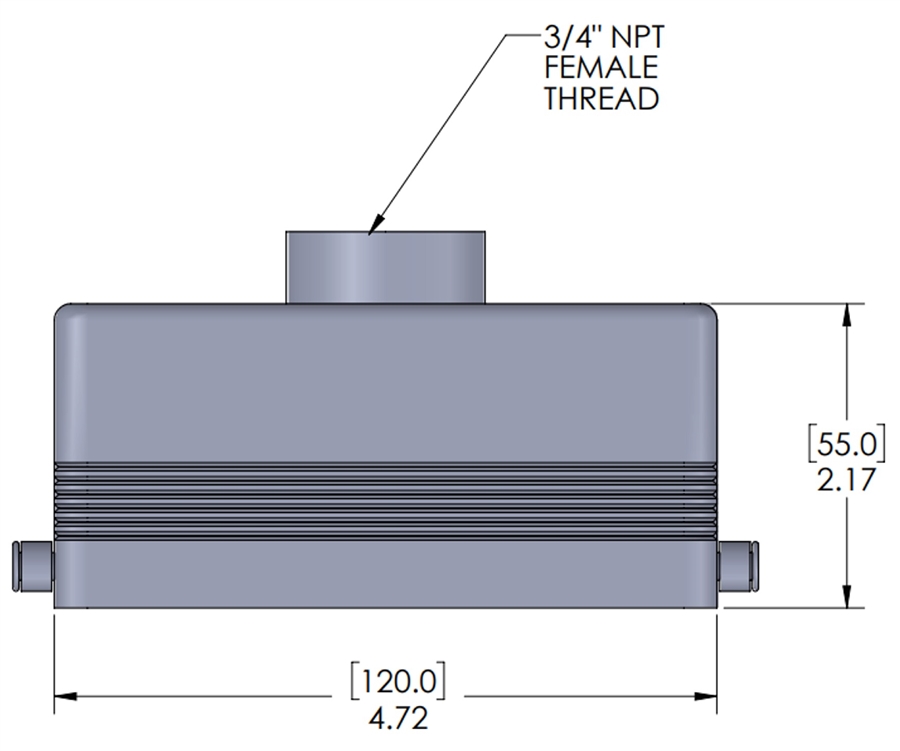

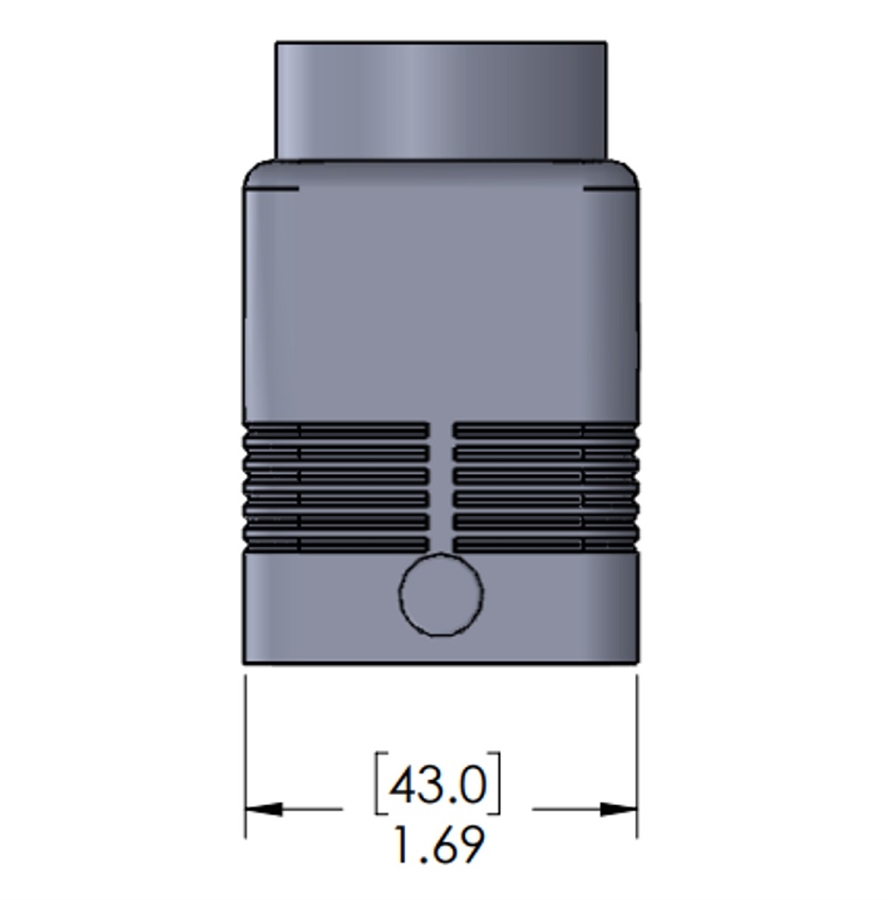

Alternative Views:

Price: $20.67

MFG P/N: CHVT-24.5L
MFG: ILME
Weight (lbs): 0.4

Availability: In Stock
Product Code: CHVT-24.5L

Qty:

Description

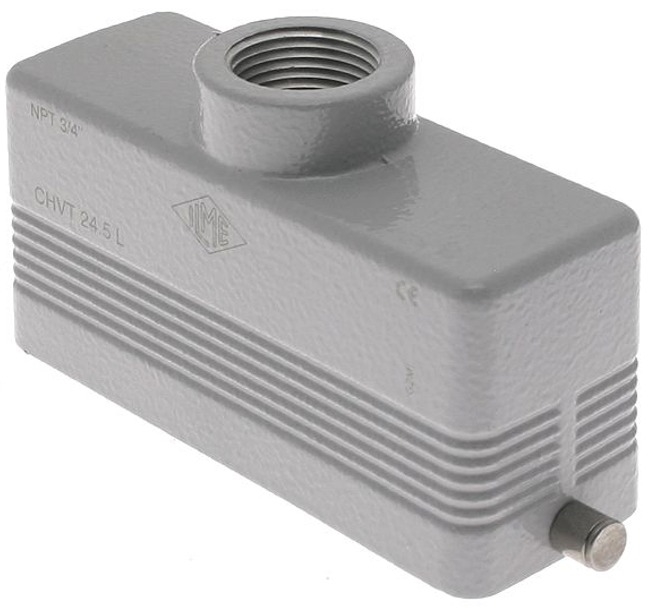

The ILME CHVT-24.5L C-Type standard metallic hood is size 104.27 and features 2 pegs with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 104 x 27mm. Rated IP 66. The CHVT-24.5L has a life expectancy over 500 cycles and the powder coat finish helps resist corrosion.

Specifications

Body- Epoxy Coated Die Cast Aluminum
ILME Series- CH
Insert Dimension- 104.27
Enclosure Dimension- 104.27
Housing Type- Metallic, Standard
Enclosure Type- Hoods for Single Lever
Mounting Style- Cable
Hood Entry- Top
Hood Thread- 3/4" NPT
Pegs- 2 Pegs
Temperature Range- -40 C to 125 C (-40 F to 257 F)
Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
Insert Center Distance- 104 x 27 mm (4.09" x 1.06")
Approvals- UL, CUL, RoHS

Compatible Inserts

Series	Part Number
CD	CDF-64, CDM-64
CDD	CDDF-108, CDDM-108
CQE	CQEF-46, CQEM-46
CSH, CDSH	CSHF-24, CSHM-24 CDSHM-42, CDSHF-42
CCE	CCEF-24, CCEM-24
CNE, CSE	CNEF-24T, CNEF-24TX, CNEM-24T, CNEM-24TX CSEF-24, CSEM-24
CSS	CSSF-24, CSSM-24

ILME CHVT-24.5L 3/4" NPT 104.27 Hood
