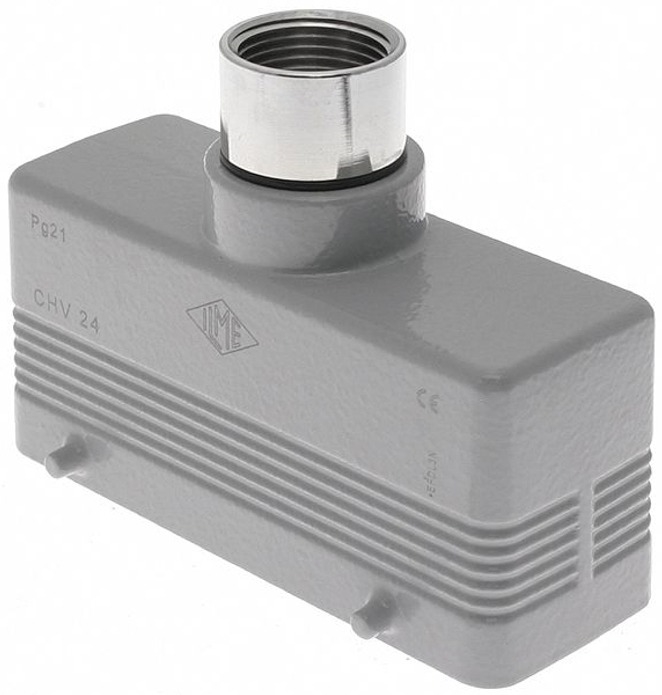

ILME C-Type Metallic Hood, Size 104.27, 3/4" NPT, 4 Pegs

The ILME CHVT-24.5 C-Type standard metallic hood is size 104.27 and features 4 pegs with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with cable entry through the top. Insert center distance: 104 x 27mm. Rated IP 66. The CHVT-24.5 has a life expectancy over 500 cycles and the powder coat finish helps resist corrosion.

Specifications

• Body- Epoxy Coated Die Cast Aluminum
• ILME Series- CH
• Insert Dimension- 104.27
• Enclosure Dimension- 104.27
• Housing Type- Metallic, Standard
• Enclosure Type- Hoods for Two Levers
• Mounting Style- Cable
• Hood Entry- Top
• Hood Thread- 3/4" NPT
• Pegs- 4 Pegs
• Temperature Range- -40 C to 125 C (-40 F to 257 F)
• Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
• Insert Center Distance- 104 x 27 mm (4.09" x 1.06")

Compatible Inserts
