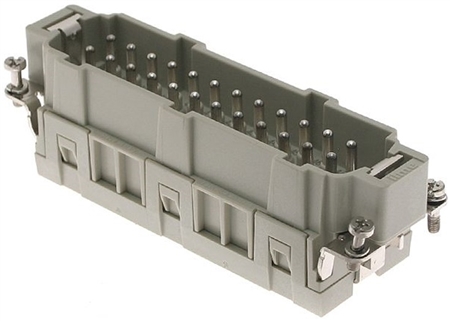

ILME CSE Series Insert, Male, Size 104.27, 24 Pin, 16A (25-48)

The ILME CSEM-24N CSE series standard male insert fits size 104.62 enclosures and is 24 pin + ground with a voltage rating of 600V and a rated current of 16A. The housing is glass reinforced thermoplastic with silver plated contacts. The thermoplastic on the housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: spring. The CSEM-24N is especially useful when a fast, easy disconnect is needed. Provides pins 25-48 for a double size 104.62 enclosure.

Specifications

• Housing - Glass Reinforced Thermoplastic
• Contacts - Silver Plated
• Gender- Male
• Pin Count- 24 + Ground
• Rated Current- 16 Amps
• Rated Voltage- 600V
• ILME Series- CSE
• Housing Type- Standard
• Operating Temperature- -40 C to 125 C (-40 F to 257 F)

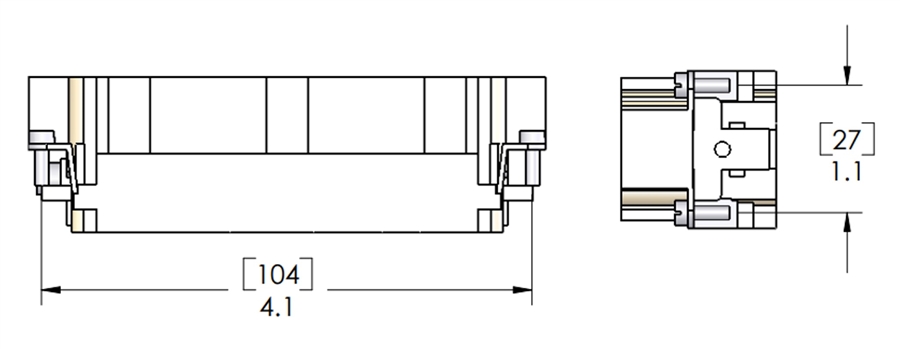

• Insert Dimension- 104.27
• Double Insert- 104.62
• Enclosure Dimension- 104.27
• Termination- Spring
• Upper AWG- 14
• Lower AWG- 26
• Insulation Resistance- >= 10GOhm
• Mechanical Life- >= 500 Cycles
• Contact Resistance- <= 3mOhm
• Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
• Approvals- UL, CSA, CQC, EAC
