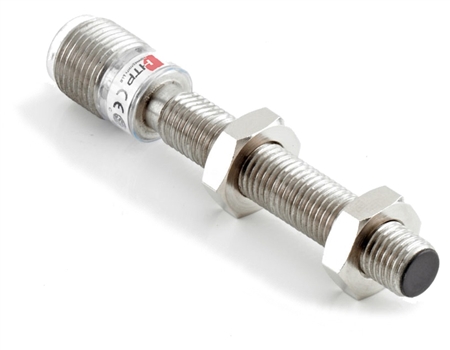

The HTP HTP1-0802N-BRL4 is a 3 wire inductive M8 Micro proximity sensor with an operating voltage of 10-30V DC, NPN normally closed output, and a shielded 2 mm sensing distance. It has a stainless steel body with a 65 mm length. It features 4-view LED indication and has a 4 pin M12 connection. Inductive sensors are used with metal targets, as opposed to plastic targets.
- Extended range for automated machinery
- Tight hysteresis for repeatable sensing
- Extra thick, high torque barrel
- 4-view LED indication & wrench flats allow for easier installation
- Can be used in all types of machines for part detection
- Short circuit & reverse polarity protection
Pin #1- Brown
Pin #2- White
Pin #3- Blue
Pin #4- Not Used
Specifications
- Type- M8 Micro
- Housing Material- 303 Stainless Steel
- Body Length- 65 mm (2.56")
- Sensing Distance- 2 mm (0.08"), Shielded
- Switching Frequency- 2000 Hz
- Switching Hysteresis- < 15% (Sr)
- Operating Voltage- 10-30V DC
- Voltage Drop- < 2 V
- Max Load Current- 0.2 Amps
- No Load Current- 0.01 Amps
- Leakage Current- 0.00001 Amps
- Output Mode- Negative / Positive / Negative (NPN), Normally Closed
- Output Indication- Red LED
- Mechanical Specification- SUS303
- Sensing Face- PBT
- IP Class- IP 67 (total protection from dust and temporary immersion in water - Up to 1 meter for up to 30 minutes)
- Operating Temperature- -25 C to 70 C (-13 F to 158 F)
- Connection- 4 pin M12
- EMC- EN 60947-5-2:2007/A1:2012
- Shock-IEC 60947-5-2, Part 7.4.1
- Vibration- IEC 60947-5-2, Part 7.4.2
- Approvals- CSA, CE
HTP M8 Micro 2mm Range NPN Extended Range Proximity Sensor
|
|
|
 |
|
 |
|
